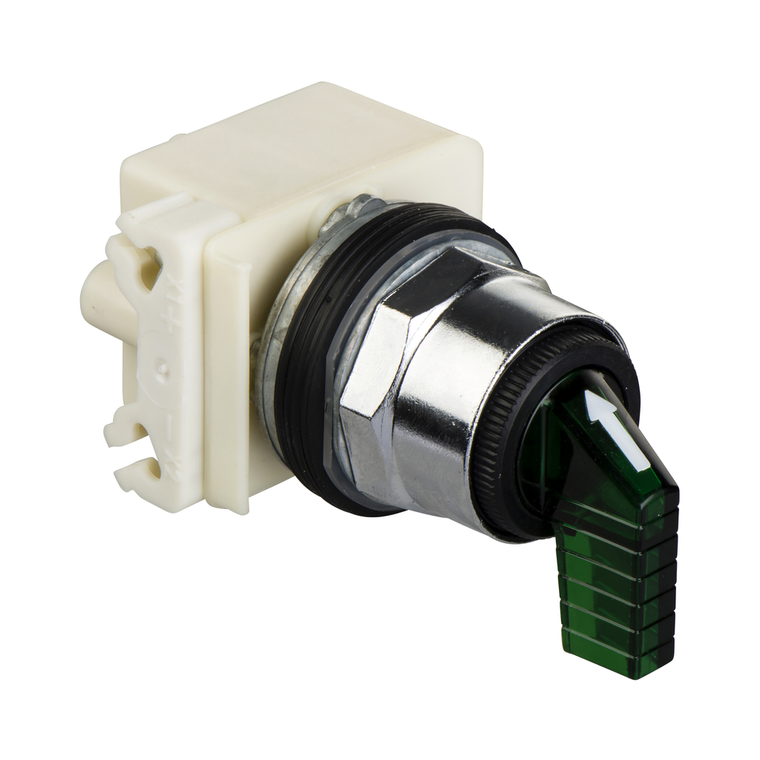

Schneider Electric 9001K11J1GH13 Selector Switch 600Vac 10A 30Mm T-K
Schneider Electric
$231.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 9001K11J1GH13 Selector Switch 600Vac 10A 30Mm T-K
This illuminated selector switch with integral LED and standard knob provides a versatile and highly visible interface for controlling your machines It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs
- Type Of Operator:
- maintained
- Operator Profile:
- standard knob
- [Us] Rated Supply Voltage:
- 110...120 V
- Warranty:
- 18 months
- Device Short Name:
- K
- Operator Profile:
- standard handle
- Type Of Operator:
- stay put
- Light Source:
- incandescent bulb
- Product Certifications:
- UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Range Of Product:
- Harmony 9001K
- Mounting Diameter:
- 30 mm
- Size:
- 30 mm
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- illuminated selector switch
- Cam Profile:
- 5
- Environmental Disclosure:
- ENVPEP121006EN
- Cap/Operator Or Lens Colour:
- green
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Presentation:
- complete product
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Operator Position Information:
- 2 positions
- Circularity Profile:
- N/A
- Connections - Terminals:
- screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Contacts Type And Composition:
- 1 C/O
- China Rohs Regulation:
- X
- Bezel Material:
- metal
- Bulb Base:
- BA 9s
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Supply Frequency:
- 50...60 Hz
- Light Block Supply:
- via integral transformer
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
