Schneider Electric

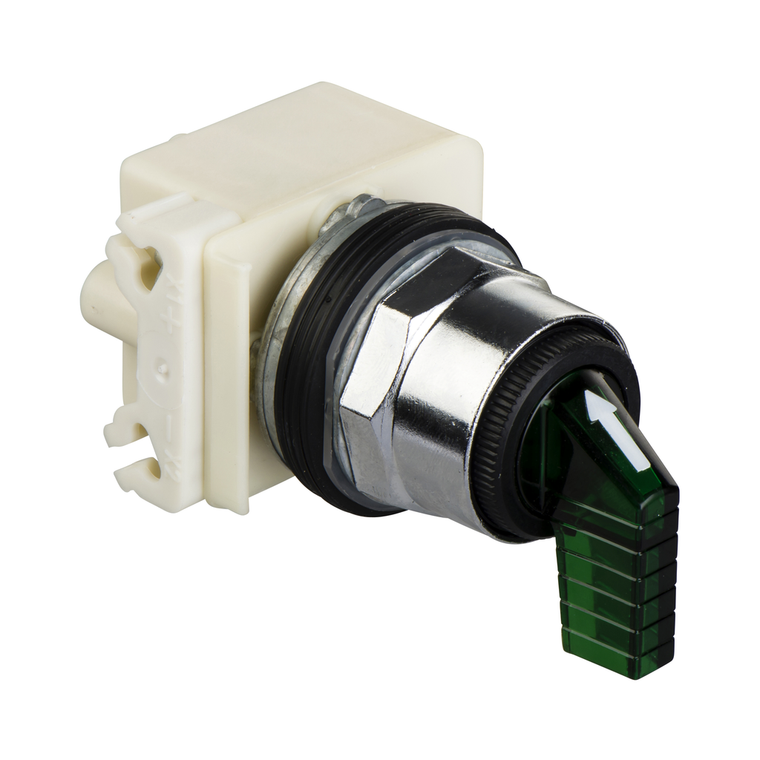

Schneider Electric 9001K12J1FGH14 Selector Switch 600Vac 10A 30Mm T-K

SKU:

9001K12J1FGH14

UPC:

785901442868

MPN:

Condition:

New

Connections - Terminals:

screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1

Nema Degree Of Protection:

NEMA 1/2/3/3R/4/6/12/13

Type Of Operator:

maintained

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

illuminated selector switch

Operator Profile:

long handle

Light Source:

incandescent bulb

Bezel Material:

metal

Sustainable Offer Status:

Green Premium product

Light Block Supply:

via integral transformer

Warranty:

18 months

Bulb Base:

BA 9s

Environmental Disclosure:

ENVPEP121006EN

Range Of Product:

Harmony 9001K

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Cam Profile:

4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cap/Operator Or Lens Colour:

green

Circularity Profile:

N/A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Presentation:

complete product

Operator Position Information:

2 positions

Type Of Operator:

stay put

Mounting Diameter:

30 mm

Contacts Type And Composition:

1 NC

[Us] Rated Supply Voltage:

110...120 V

Rohs Exemption Information:

Yes

Device Short Name:

K

Size:

30 mm

Supply Frequency:

50...60 Hz

Operator Profile:

gloved hand knob

Product Certifications:

CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR || CE

Brochure:

View

Catalog:

View

Datasheet:

View
