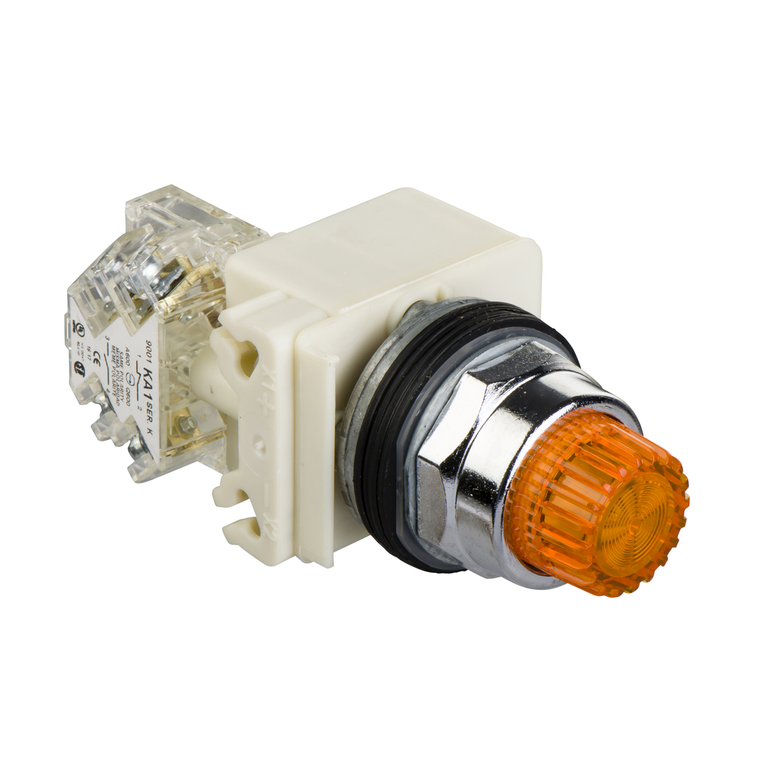

Schneider Electric 9001K2L1AH13 Push Button 600Vac 10A 30Mm T-K

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001K2L1AH13 Push Button 600Vac 10A 30Mm T-K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001K2L1AH13

UPC:

785901027522

MPN:

Condition:

New

Light Source:

incandescent

[Us] Rated Supply Voltage:

110...120 V

Mounting Diameter:

30 mm

Supply Frequency:

50...60 Hz

Product Or Component Type:

illuminated push-button

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

X

Light Block Supply:

via integral transformer

Product Certifications:

NEMA || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE

Device Presentation:

complete product

Contacts Type And Composition:

1 C/O

Connections - Terminals:

screw clamp terminals

Environmental Disclosure:

ENVPEP121006EN

Light Source:

incandescent bulb

Sustainable Offer Status:

Green Premium product

[Ie] Rated Operational Current:

10 A, AC-15 || 10 A, DC-13

Mercury Free:

Yes

Operating Position:

any position

Device Short Name:

K

Rohs Exemption Information:

Yes

Cap/Operator Or Lens Colour:

amber

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operator Profile:

projecting

Operator Profile:

amber projecting

Bulb Base:

BA 9s

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Range Of Product:

Harmony 9001K

Bezel Material:

metal

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Us] Rated Supply Voltage:

110...120 V AC

Size:

30 mm

Nema Degree Of Protection:

NEMA 1/2/3/3R/4/6/12/13

Circularity Profile:

N/A

Operator Additional Information:

without guard

Contact Operation:

standard

Brochure:

View

Datasheet:

View
