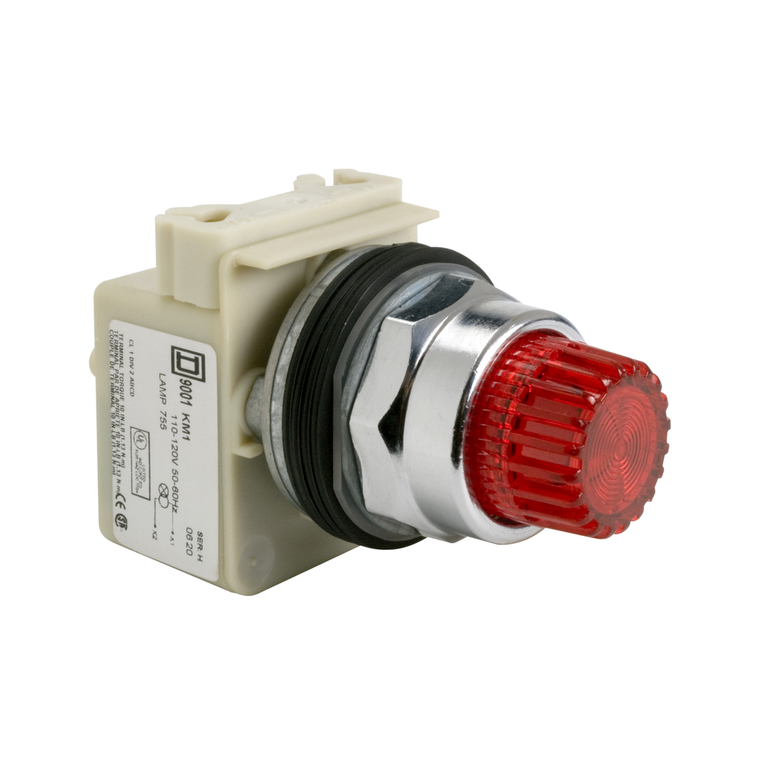

Schneider Electric 9001K2L35LRR20 Pushbutton Operator 30Mm Type K +Options

Schneider Electric 9001K2L35LRR20 Pushbutton Operator 30Mm Type K +Options

Schneider Electric
SKU:
9001K2L35LRR20
|
UPC:
785901633938
Availability:
Contact us to confirm availability and lead times.
$153.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This illuminated momentary push button has a die cast ring nut with a clear plastic end. This push button has a 24/28 VAC/VDC light module to provide the illumination. The light module has a red LED lamp. This operator is supplied with a red 1.375 inch mushroom button. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Additional Information
Light Source:
Red LED
Operator Profile:
red mushroom Ø 35 mm, unmarked
Operating Position:
any position
Warranty:
18 months
Protective Treatment:
TC
Ambient Air Temperature For Operation:
-25-70 °C
Shape Of Signaling Unit Head:
round
Device Short Name:
9001K
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Shock Resistance:
50 gn IEC 60068-2-27
Operator Additional Information:
screw-on plastic
Bulb Base:
BA 9s
Product Or Component Type:
head for illuminated push-button
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Net Weight:
0.166 kg
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP121006EN
Operator Profile:
mushroom Ø 35 mm
Cap/Operator Or Lens Colour:
red
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Light Source Colour:
red
Sustainable Offer Status:
Green Premium product
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
[Us] Rated Supply Voltage:
24...28 V
Circularity Profile:
N/A
China Rohs Regulation:
X
Contacts Type And Composition:
without contact block
Type Of Operator:
spring return
Mechanical Durability:
5000000 cycles
Bezel Material:
metal
Electrical Shock Protection Class:
class II IEC 61140
Light Block Supply:
direct 24...28 V AC/DC
Ambient Air Temperature For Storage:
-40-70 °C
Ip Degree Of Protection:
IP66 IEC 60529
Mounting Diameter:
30 mm
Range Of Product:
Harmony 9001K
Standards:
EN/IEC 60947-5-4 || JIS C 852 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508 || JIS C 4520
Product Certifications:
NEMA || UL 508
