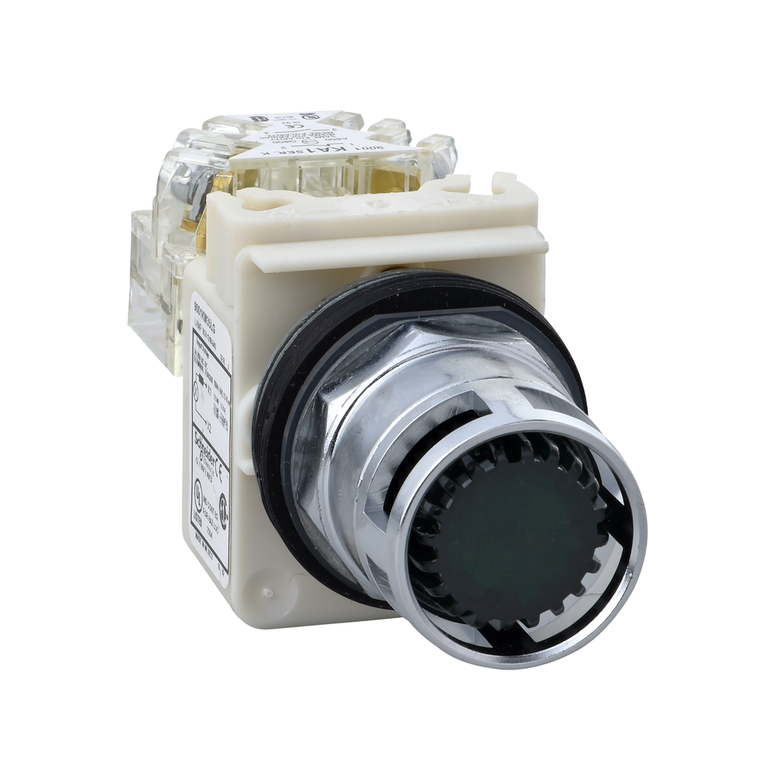

Schneider Electric 9001K3L35GH13 Push Button 600Vac 10A 30Mm T-K

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 9001K3L35GH13 Push Button 600Vac 10A 30Mm T-K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001K3L35GH13

UPC:

3389110930412

MPN:

Condition:

New

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4

Ambient Air Temperature For Storage:

-40-70 °C

Sustainable Offer Status:

Green Premium product

Light Block Supply:

full voltage

Bezel Material:

metal

Device Presentation:

complete product

Cap/Operator Or Lens Colour:

green

Connections - Terminals:

screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1

China Rohs Regulation:

X

Circularity Profile:

N/A

Product Certifications:

UL 508 || NEMA

Cad Overall Depth:

106 mm

Mechanical Durability:

5000000 cycles

Standards:

UL 508 || JIS C 852 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C 4520 || EN/IEC 60947-5-4

Shape Of Screw Head:

cross slotted

Mercury Free:

Yes

Terminals Description Iso N°1:

(13-14-11-12)OF

Size:

30 mm

Bulb Base:

BA 9s

Tightening Torque:

0.8-0.8 N.m IEC 60947-1

Light Block Supply:

direct

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Contacts Type And Composition:

1 C/O

Light Source:

incandescent bulb

Operator Profile:

green flush, unmarked

Protective Treatment:

TC

Light Source:

incandescent

[Us] Rated Supply Voltage:

24...28 V

Warranty:

18 months

Cad Overall Width:

54 mm

[Us] Rated Supply Voltage:

24...28 V AC/DC

Device Short Name:

9001K

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Height:

42 mm

Range Of Product:

Harmony 9001K

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Rohs Exemption Information:

Yes

Short-Circuit Protection:

10 A cartridge fuse IEC 60947-5-1

Ip Degree Of Protection:

IP66 IEC 60529

[Icm] Rated Short-Circuit Making Capacity:

12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA

Contact Operation:

standard

Environmental Disclosure:

ENVPEP121006EN

Product Or Component Type:

illuminated push-button

Mounting Diameter:

30 mm

Shock Resistance:

50 gn IEC 60068-2-27

Operator Profile:

flush

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shape Of Signaling Unit Head:

octagonal

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Rated Breaking Capacity:

1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Positive Opening:

without

Contacts Material:

silver alloy contacts

Operator Additional Information:

metal guard

Operating Position:

any position

Net Weight:

0.175 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Overvoltage Category:

class II IEC 61140

Ambient Air Temperature For Operation:

-25-70 °C

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1
