Schneider Electric 9001K3L35WH5 Push Button 600Vac 10A 30Mm T-K

Schneider Electric 9001K3L35WH5 Push Button 600Vac 10A 30Mm T-K

Schneider Electric
SKU:
9001K3L35WH5
|
UPC:
785901398639
Availability:
Contact us to confirm availability and lead times.
$175.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

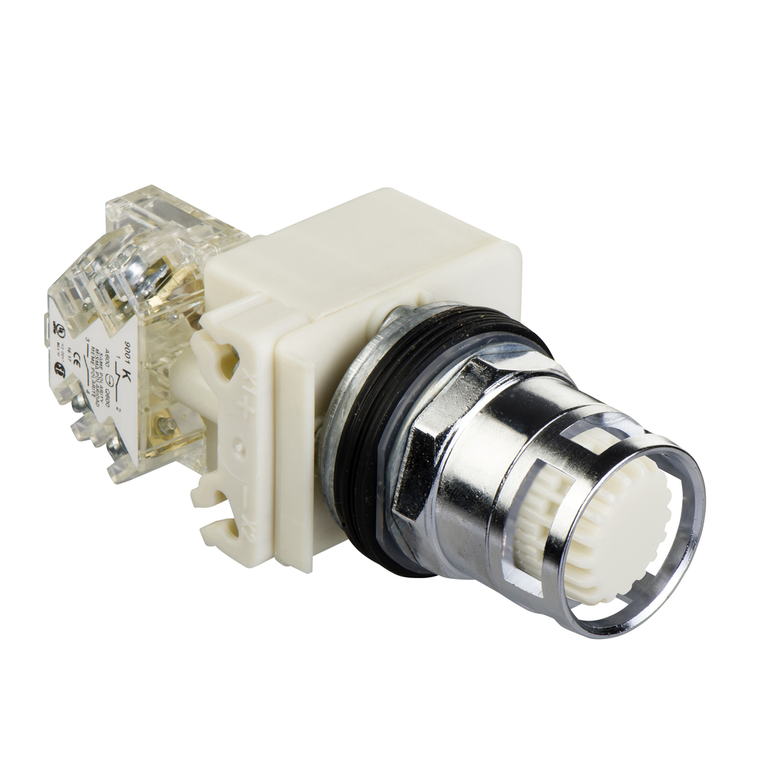

This Harmony 9001K, modular illuminated flush white push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Additional Information
Rohs Exemption Information:
Yes
Light Source:
incandescent bulb
Range Of Product:
Harmony 9001K
Product Or Component Type:
illuminated push-button
Light Block Supply:
direct
Bezel Material:
metal
[Ie] Rated Operational Current:
10 A, AC-15 || 10 A, DC-13
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
Size:
30 mm
[Us] Rated Supply Voltage:
24...28 V AC/DC
Device Short Name:
K
[Us] Rated Supply Voltage:
24...28 V
Light Source:
incandescent
Bulb Base:
BA 9s
China Rohs Regulation:
X
Contact Operation:
standard
Light Block Supply:
full voltage
Mercury Free:
Yes
Contacts Type And Composition:
1 NO
Operator Profile:
flush
Product Certifications:
NEMA || CE || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03
Environmental Disclosure:
ENVPEP121006EN
Operator Profile:
white flush
Circularity Profile:
N/A
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operator Additional Information:
metal guard
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Operating Position:
any position
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Diameter:
30 mm
Device Presentation:
complete product
Warranty:
18 months
Connections - Terminals:
screw clamp terminals
Cap/Operator Or Lens Colour:
white
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Datasheet:
View
