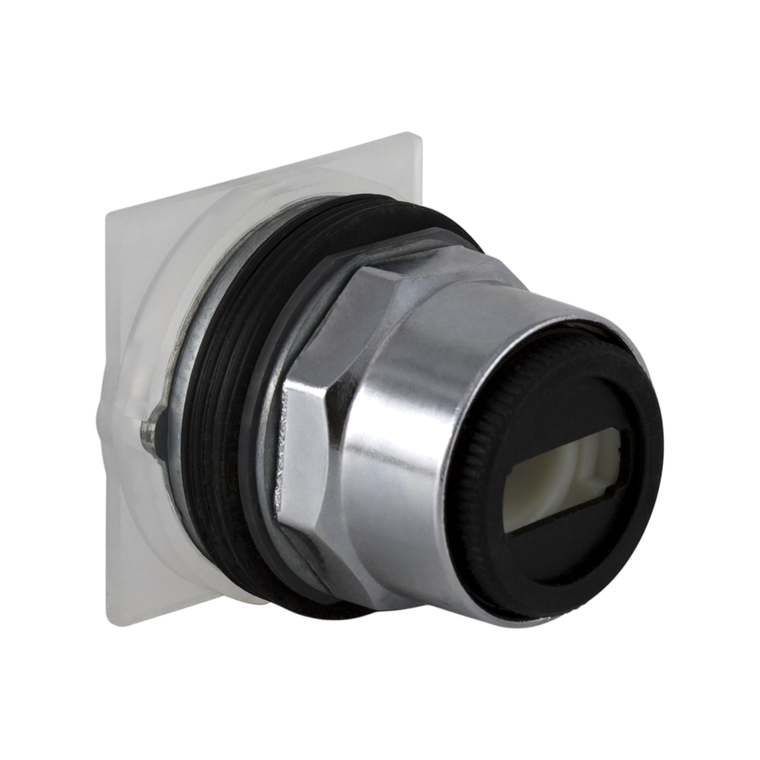

Schneider Electric 9001K53J1 Selector Switch Operator 30Mm T-K

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001K53J1 Selector Switch Operator 30Mm T-K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001K53J1

UPC:

785901028666

MPN:

Condition:

New

Shock Resistance:

50 gn IEC 60068-2-27

Supply Frequency:

50...60 Hz

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

China Rohs Regulation:

X

Bezel Material:

metal

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Light Block Supply:

via integral transformer

Electrical Shock Protection Class:

class II IEC 61140

Mounting Diameter:

30 mm

Circularity Profile:

N/A

[Us] Rated Supply Voltage:

110...120 V

Range Of Product:

Harmony 9001K

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Light Source:

incandescent

Return:

both sides to centre

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Contacts Type And Composition:

without contact block

Type Of Operator:

both sides to centre spring return

Standards:

EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C 4520 || UL 508 || EN/IEC 60947-1 || JIS C 852

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Net Weight:

0.245 kg

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

Product Or Component Type:

head for illuminated selector switch

Operator Profile:

without handle

Protective Treatment:

TC

Ambient Air Temperature For Storage:

-40-70 °C

Type Of Operator:

spring return

Mercury Free:

Yes

Ip Degree Of Protection:

IP66 IEC 60529

Environmental Disclosure:

ENVPEP121006EN

Product Certifications:

NEMA || UL 508

Ambient Air Temperature For Operation:

-25-70 °C

Cam Profile:

3

Device Short Name:

9001K

Mechanical Durability:

500000 cycles

Device Presentation:

basic element

Bulb Base:

BA 9s

Sustainable Offer Status:

Green Premium product

Light Source:

incandescent bulb

Warranty:

18 months

Shape Of Signaling Unit Head:

round

Size:

30 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operator Position Information:

3 positions
