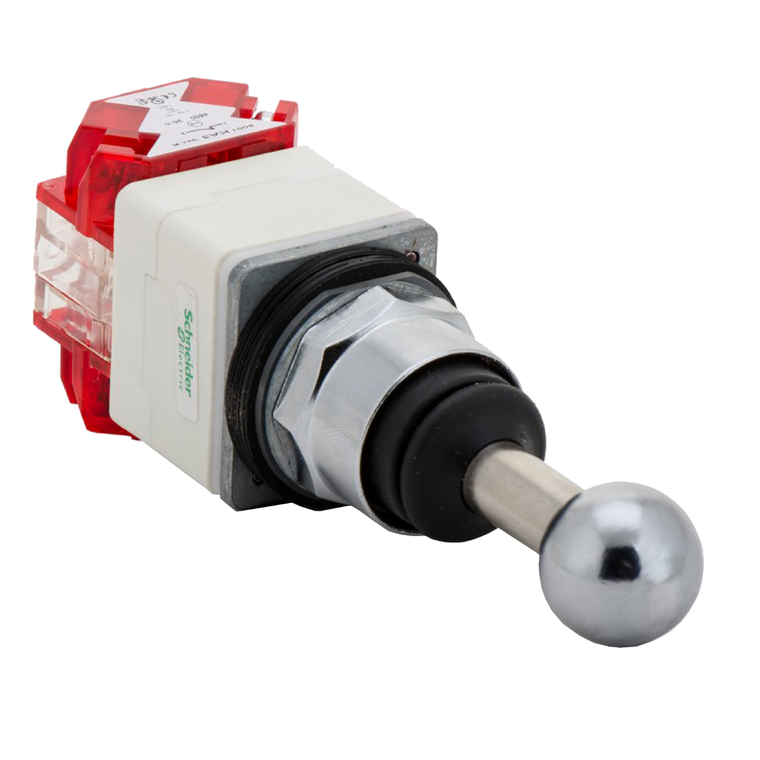

Schneider Electric 9001K71 30Mm Joystick 2 Position

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001K71 30Mm Joystick 2 Position

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001K71

UPC:

3.38912E+12

MPN:

Condition:

New

Device Short Name:

9001K

Device Presentation:

basic element

Net Weight:

0.372 kg

Contacts Type And Composition:

without contact block

Overvoltage Category:

II IEC 61140

Return:

to centre

Warranty:

18 months

Mercury Free:

Yes

Sale Per Indivisible Quantity:

1

Ambient Air Temperature For Storage:

-40-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-25-70 °C

Circularity Profile:

N/A

Environmental Disclosure:

ENVPEP121006EN

Protective Treatment:

TC

Bezel Material:

metal

Mounting Diameter:

30 mm

Product Certifications:

NEMA || UL 508

Operator Profile:

80 mm long operating shaft

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection:

IP66 IEC 60529

Shape Of Signaling Unit Head:

octagonal

Operating Position:

horizontal

Range Of Product:

Harmony 9001K

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Operator Direction Information:

2 directions

Sustainable Offer Status:

Green Premium product

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4

Product Or Component Type:

head for joystick controller

Size:

30 mm

Shock Resistance:

50 gn IEC 60068-2-27

Standards:

UL 508 || JIS C 852 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
