Schneider Electric

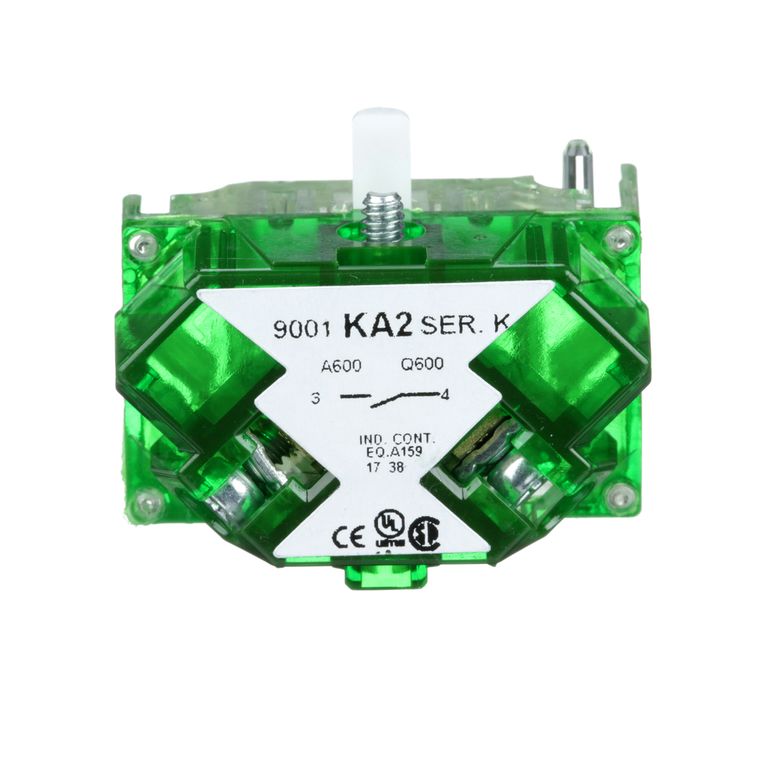

Schneider Electric 9001KA2 30Mm Contact Block 1N/O

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 9001KA2 30Mm Contact Block 1N/O

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KA2

UPC:

3389110917857

MPN:

Condition:

New

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Connections - Terminals:

screw-clamp terminals

Net Weight:

0.023 kg

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Contacts Material:

silver alloy contacts

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Operation:

-25-70 °C

Mercury Free:

Yes

Standards:

IEC 60947-5-4 || JIS C 852 || IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || UL 60947-5-1

Terminals Description Iso N°1:

(1-2)NC

Environmental Disclosure:

ENVPEP121006EN

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1

Rated Breaking Capacity:

3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Tightening Torque:

0.8-0.8 N.m IEC 60947-1

[Us] Rated Supply Voltage:

0...600 V

Warranty:

18 months

Ip Degree Of Protection:

IP20 IEC 60529

Electrical Shock Protection Class:

class II IEC 61140

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

Shock Resistance:

50 gn IEC 60068-2-27

Range Of Product:

Harmony 9001K || Harmony 9001SK

Protective Treatment:

TC

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Product Certifications:

UL 508 || NEMA

Ambient Air Temperature For Storage:

-40-70 °C

Positive Opening:

without

Contacts Type And Composition:

1 NO

Shape Of Screw Head:

cross slotted

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Rohs Exemption Information:

Yes

[Icm] Rated Short-Circuit Making Capacity:

12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.27 kA 250 V DC-13, 7200 VA || 0.55 kA 125 V DC-13, 7200 VA || 0.1 kA 600 V DC-13

Contact Operation:

standard

Device Short Name:

9001K

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Short-Circuit Protection:

10 A cartridge fuse IEC 60947-5-1

Product Or Component Type:

contact block
