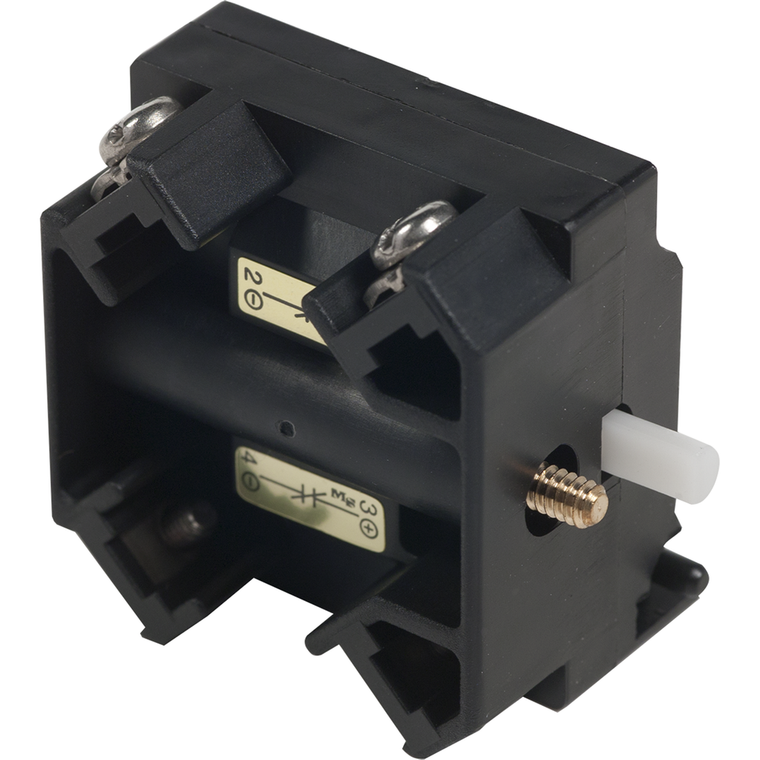

Schneider Electric 9001KA54 30Mm Contact Block 2N/C Power Reed

Schneider Electric 9001KA54 30Mm Contact Block 2N/C Power Reed

Schneider Electric
SKU:
9001KA54
|
UPC:
785901827528
Availability:
Contact us to confirm availability and lead times.
$143.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This contact block allows fast and easy replacement and configuration of your push buttons and selector switches The contact block has 2N/ O contacts It is easily installed and replaced on 9001K complete push-button units and selector switches High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
Additional Information
Warranty:
18 months
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
contact block
Mercury Free:
Yes
Device Short Name:
K
Circularity Profile:
N/A
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Short-Circuit Protection:
3 A fingersafe
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Harmony 9001K || Harmony 9001SK
Contacts Type And Composition:
2 NC
Product Certifications:
UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE
[Us] Rated Supply Voltage:
240 V
Connections - Terminals:
screw-clamp terminals
Environmental Disclosure:
ENVPEP121006EN
Contact Operation:
power reed || hermetically sealed
