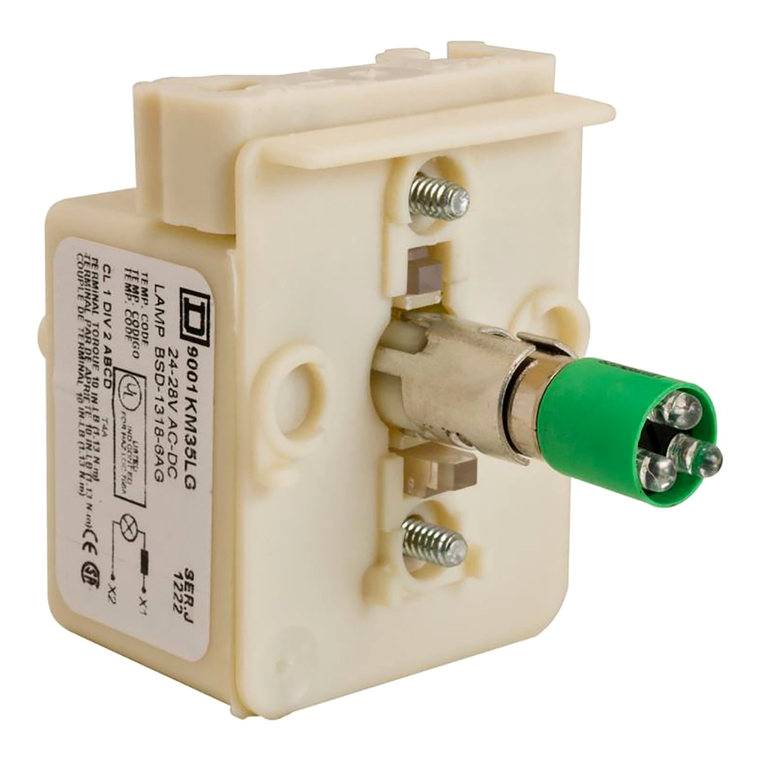

Schneider Electric 9001KM35LG 30Mm Light Module Resist 24V Led Green
Schneider Electric
$116.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 9001KM35LG 30Mm Light Module Resist 24V Led Green
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 24 to 28 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a green LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or green lens cap. These light modules are UL Listed and CSA certified.
- Rohs Exemption Information:
- Yes
- Standards:
- UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C 4520 || JIS C 852
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- 9001K
- Mercury Free:
- Yes
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Range Of Product:
- Harmony 9001K || Harmony 9001SK
- Product Certifications:
- UL Listed || CSA || NEMA
- Bulb Base:
- BA 9s
- China Rohs Regulation:
- X
- Environmental Disclosure:
- ENVPEP121006EN
- Ambient Air Temperature For Storage:
- -40-70 °C || -40-158 °F
- Ambient Air Temperature For Operation:
- -25-70 °C || -13-158 °F
- Protective Treatment:
- TC
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- light module || light block
- Light Source:
- LED (bulb included)
- Circularity Profile:
- N/A
- Light Block Colour:
- green
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
