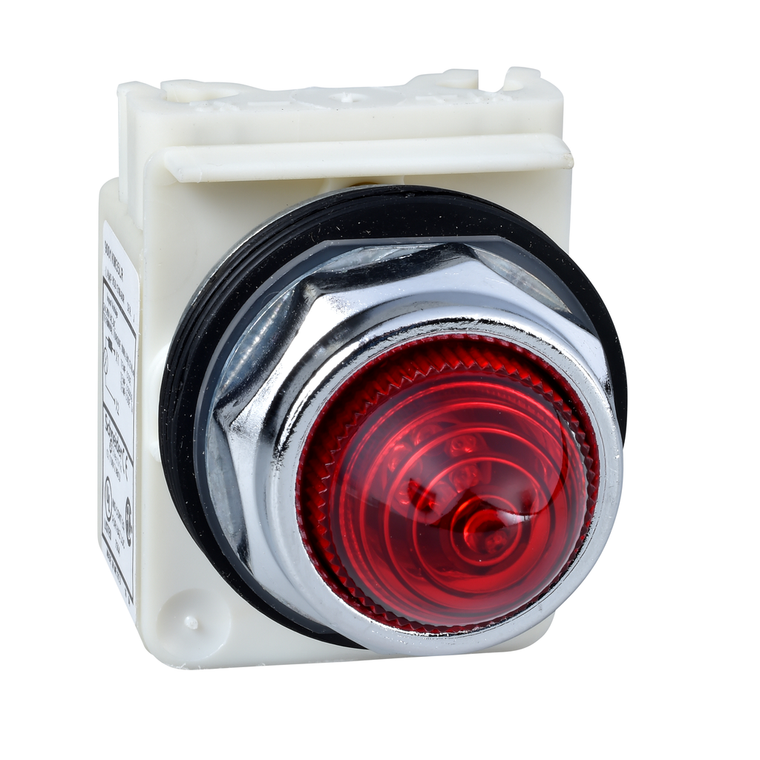

Schneider Electric 9001KP38LRR9 Pilot Light 120V 30Mm Type K +Options
This Harmony 9001K, red pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
- Ip Degree Of Protection:
- IP66 IEC 60529
- Environmental Disclosure:
- ENVPEP121006EN
- Product Certifications:
- UL 508 || NEMA
- Light Source:
- LED
- Bezel Material:
- metal
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Cap/Operator Or Lens Colour:
- red
- Lens Type:
- domed plastic
- Overvoltage Category:
- class II IEC 61140
- Device Presentation:
- complete product
- Protective Treatment:
- TC
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Shock Resistance:
- 50 gn IEC 60068-2-27
- China Rohs Regulation:
- X
- Bulb Base:
- BA 9s
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Range Of Product:
- Harmony 9001K
- Shape Of Screw Head:
- cross slotted
- Operating Position:
- any position
- Mounting Diameter:
- 30 mm
- Warranty:
- 18 months
- Short-Circuit Protection:
- 10 A cartridge fuse IEC 60947-5-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Shape Of Signaling Unit Head:
- round
- Size:
- 30 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV IEC 60947-1
- Cad Overall Depth:
- 42 mm
- Lens Type:
- domed
- Cad Overall Height:
- 70 mm
- Device Short Name:
- 9001K
- Light Block Supply:
- direct 120 V AC/DC
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Light Source:
- Red LED
- Cad Overall Width:
- 54 mm
- Product Or Component Type:
- pilot light
- [Us] Rated Supply Voltage:
- 120 V
- [Us] Rated Supply Voltage:
- 120 V AC/DC
- Light Source Colour:
- red
- Tightening Torque:
- 0.8-0.8 N.m IEC 60947-1
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Net Weight:
- 0.134 kg
- Lens Material:
- polycarbonate
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- [Ui] Rated Insulation Voltage:
- 250 V 2)IEC 60947-1
- Circularity Profile:
- N/A
