Schneider Electric

Schneider Electric 9001KP38LYY9 Pilot Light 120V 30Mm Type K +Options

(No reviews yet) Write a Review
SKU:
9001KP38LYY9
UPC:
785901849537
Condition:
New
Product Or Component Type:
pilot light
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Mercury Free:
Yes
Shape Of Screw Head:
round
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Lens Material:
polycarbonate
Sustainable Offer Status:
Green Premium product
[Us] Rated Supply Voltage:
120 V AC/DC
Circularity Profile:
N/A
[Us] Rated Supply Voltage:
120 V
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Short Name:
K
Product Certifications:
CSA LR25490 class 3211 03 || CE || UL listed file E42259 CCN NKCR
Mounting Diameter:
30 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Presentation:
complete product
Range Of Product:
Harmony 9001K
Light Source Colour:
yellow
Lens Type:
domed
Environmental Disclosure:
ENVPEP121006EN
Rohs Exemption Information:
Yes
Light Source:
LED
Light Block Supply:
direct 120 V
China Rohs Regulation:
X
Operating Position:
any position
Light Source:
Yellow LED
Bulb Base:
BA 9s
Lens Type:
domed plastic
Connections - Terminals:
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Size:
30 mm
Cap/Operator Or Lens Colour:
yellow
Bezel Material:
metal
Operating Mode:
normal
Brochure:
View
Datasheet:
View
$153.00

Description

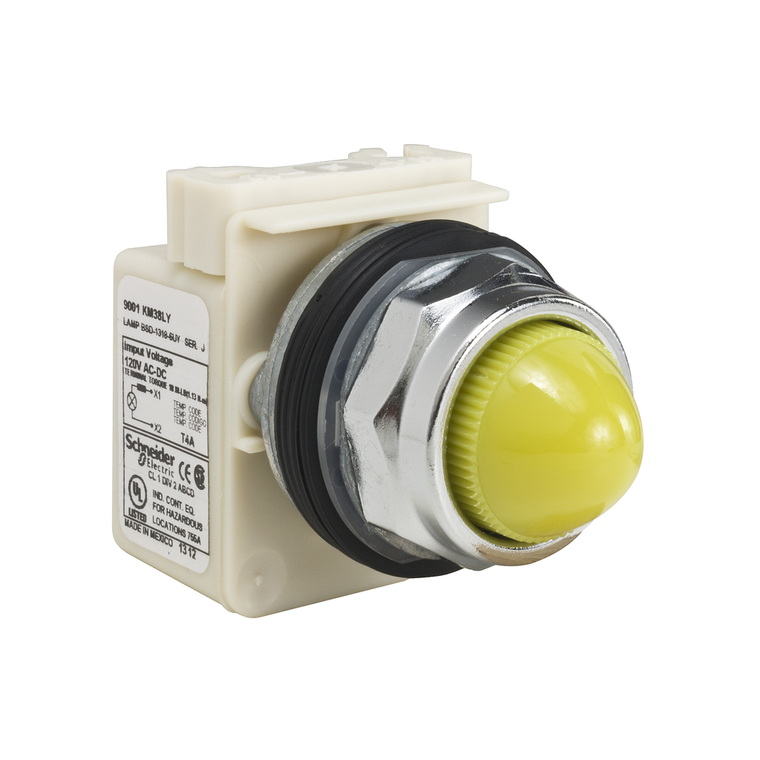

This Harmony 9001K, yellow pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
