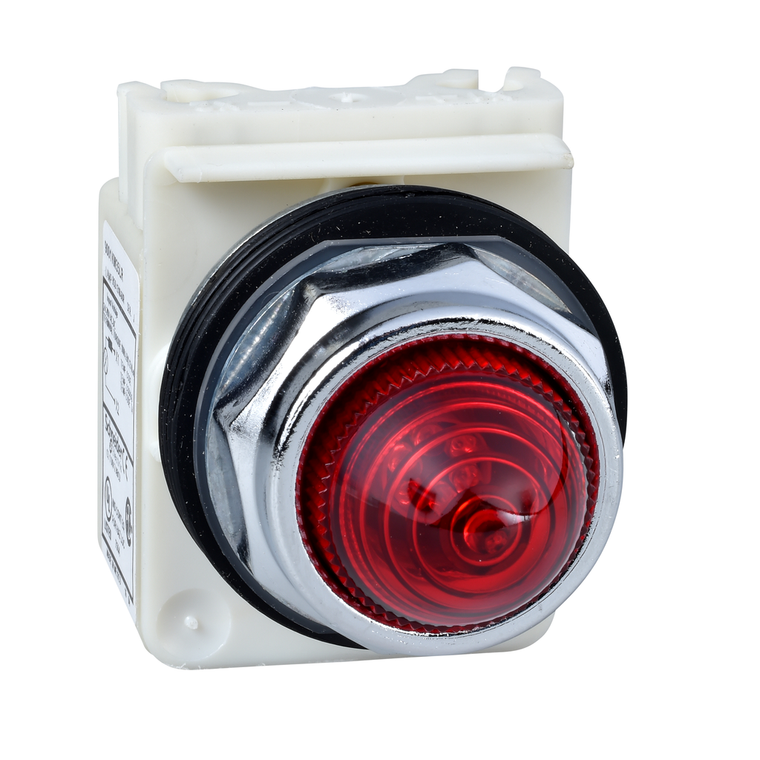

Schneider Electric 9001KP5R9 Pilot Light 480Vac 30Mm Type K +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001KP5R9 Pilot Light 480Vac 30Mm Type K +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KP5R9

UPC:

3389118040915

MPN:

Condition:

New

[Us] Rated Supply Voltage:

380...480 V AC

Shape Of Signaling Unit Head:

round

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Product Or Component Type:

pilot light

Supply Frequency:

50...60 Hz

Short-Circuit Protection:

10 A cartridge fuse IEC 60947-5-1

Cad Overall Depth:

42 mm

Ambient Air Temperature For Operation:

-25-70 °C

China Rohs Regulation:

X

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || JIS C 852 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1

Operating Position:

any position

Bezel Material:

metal

Device Presentation:

complete product

Bulb Base:

BA 9s

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Diameter:

30 mm

Light Block Supply:

via integral transformer

Light Block Supply:

via integral transformer 380...480 V AC 50/60 Hz 6 V)

Light Source:

incandescent

Circularity Profile:

N/A

Size:

30 mm

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV IEC 60947-1

Protective Treatment:

TC

Shape Of Screw Head:

cross slotted

Sustainable Offer Status:

Green Premium product

Lens Type:

domed plastic

Cap/Operator Or Lens Colour:

red

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

250 V 2)IEC 60947-1

Light Source:

incandescent bulb

Cad Overall Height:

70 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1

Warranty:

18 months

Device Short Name:

9001K

Ip Degree Of Protection:

IP66 IEC 60529

Net Weight:

0.21 kg

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

Lens Type:

domed

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Of Product:

Harmony 9001K

Lens Material:

polycarbonate

Product Certifications:

NEMA || UL 508

Cad Overall Width:

54 mm

Environmental Disclosure:

ENVPEP121006EN

[Us] Rated Supply Voltage:

380...480 V

Overvoltage Category:

class II IEC 61140

Ambient Air Temperature For Storage:

-40-70 °C

Shock Resistance:

50 gn IEC 60068-2-27

Tightening Torque:

0.8-0.8 N.m IEC 60947-1
