Schneider Electric 9001KR1UH13 Pushbutton 600Vac 10A 30Mm Type K
Schneider Electric
$89.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

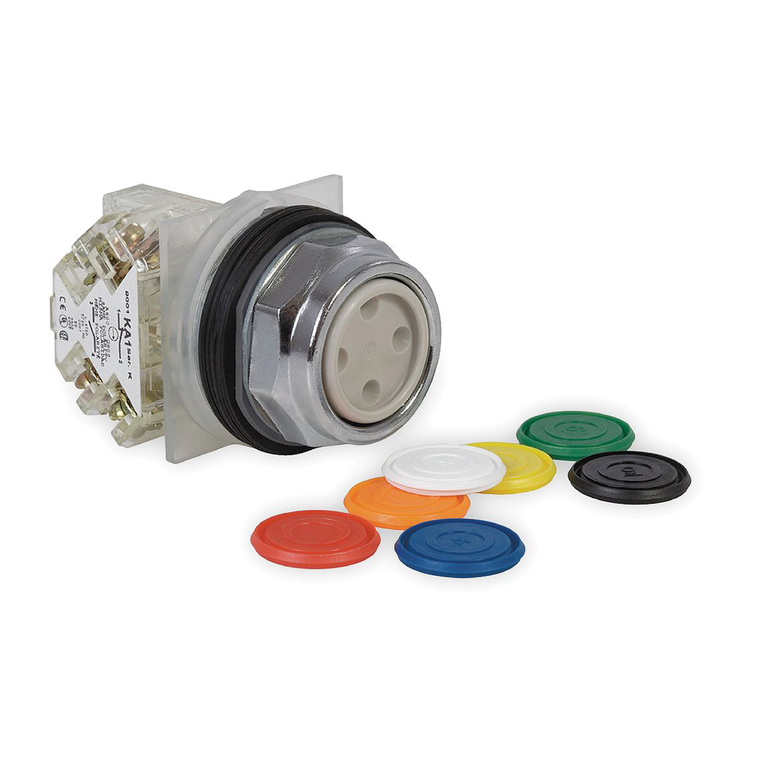

This Schneider Electric Harmony 9001K modular flush push-button with full guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has 1 x NO + 1 x NC contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. It has a chromium-plated metal bezel. This flush push-button with full guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13).
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Size:
- 30 mm
- Tightening Torque:
- 0.8-0.8 N.m IEC 60947-1
- Cap/Operator Or Lens Colour:
- 7 colours choice
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operator Additional Information:
- metal guard
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Contacts Type And Composition:
- 1 C/O
- Cad Overall Height:
- 45 mm
- Rated Breaking Capacity:
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Product Or Component Type:
- push-button
- Operator Profile:
- 7 colours choice flush, unmarked
- Standards:
- UL 508 || JIS C 4520 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C 852
- Contact Operation:
- standard
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- metal
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV IEC 60947-1
- Device Presentation:
- complete product
- Cad Overall Width:
- 48 mm
- Connections - Terminals:
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Mounting Diameter:
- 30 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Shape Of Screw Head:
- cross slotted
- Device Short Name:
- 9001K
- Sustainable Offer Status:
- Green Premium product
- Positive Opening:
- without
- China Rohs Regulation:
- X
- Operator Profile:
- flush
- Mercury Free:
- Yes
- Product Certifications:
- NEMA || UL 508
- Cad Overall Depth:
- 56 mm
- Mechanical Durability:
- 5000000 cycles
- Environmental Disclosure:
- ENVPEP121006EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile:
- N/A
- Electrical Shock Protection Class:
- class II IEC 61140
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Warranty:
- 18 months
- Short-Circuit Protection:
- 10 A cartridge fuse IEC 60947-5-1
- Terminals Description Iso N°1:
- (13-14-11-12)OF
- Protective Treatment:
- TC
- Operating Position:
- any position
- Net Weight:
- 0.121 kg
- Range Of Product:
- Harmony 9001K
- Ambient Air Temperature For Operation:
- -25-70 °C
- Shape Of Signaling Unit Head:
- octagonal
- Contacts Material:
- silver alloy contacts
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- [Icm] Rated Short-Circuit Making Capacity:
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
