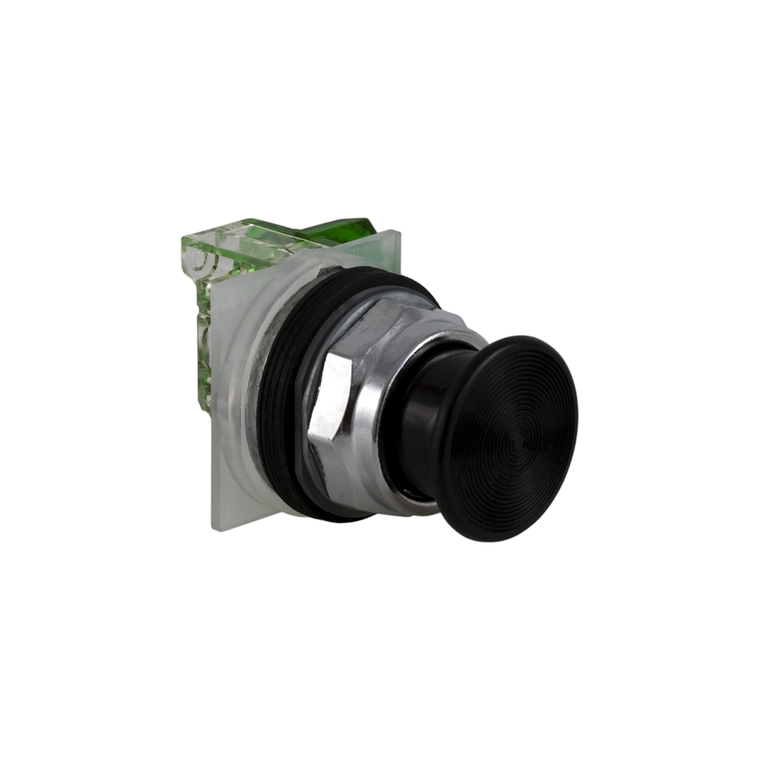

Schneider Electric 9001KR24BH5 Push Button 600Vac 10A 30Mm T-K

Schneider Electric 9001KR24BH5 Push Button 600Vac 10A 30Mm T-K

Schneider Electric
SKU:
9001KR24BH5
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$168.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony 9001K, modular black push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 35mm mushroom head and 1 x NO contact. This 35mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Additional Information
Contacts Type And Composition:
1 NO
Operator Profile:
black mushroom Ø 35 mm
Range Of Product:
Harmony 9001K
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Cap/Operator Or Lens Colour:
black
Mounting Diameter:
30 mm
Operator Profile:
mushroom Ø 35 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Light Block Supply:
without supply
Operating Position:
any position
Contact Operation:
standard
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty:
18 months
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP121006EN
Connections - Terminals:
screw clamp terminals
Device Short Name:
K
Mercury Free:
Yes
Device Presentation:
complete product
Product Certifications:
CE || CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR
Light Source:
without
Sustainable Offer Status:
Green Premium product
[Ie] Rated Operational Current:
10 A, AC-15 || 10 A, DC-13
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Operator Additional Information:
screw-on plastic with set screw
Circularity Profile:
N/A
Bezel Material:
metal
Size:
30 mm
Product Or Component Type:
push-button
China Rohs Regulation:
X
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
