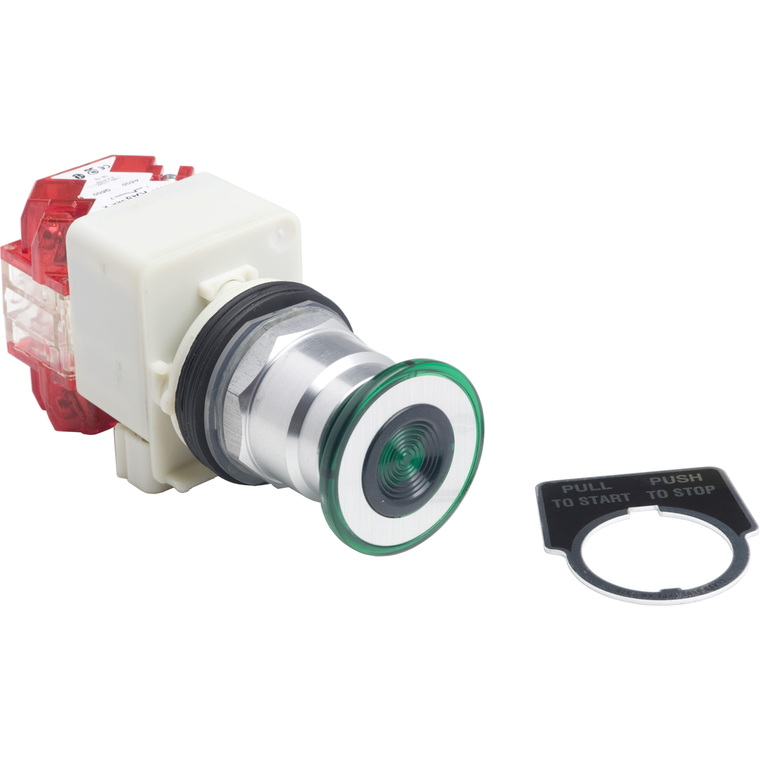

Schneider Electric 9001KR8P1GH25 Push Button 600Vac 10A 30Mm T-K

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001KR8P1GH25 Push Button 600Vac 10A 30Mm T-K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KR8P1GH25

UPC:

3.38912E+12

MPN:

Condition:

New

Circularity Profile:

N/A

Rohs Exemption Information:

Yes

Light Source:

incandescent bulb

Warranty:

18 months

Size:

30 mm

Product Certifications:

CE || CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR

Cap/Operator Or Lens Colour:

green

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

110...120 V

Device Short Name:

K

Operator Position Information:

3 positions

Operator Additional Information:

screw-on plastic

Product Or Component Type:

illuminated push-button

Operator Profile:

mushroom Ø 41 mm

Range Of Product:

Harmony 9001K

Light Block Supply:

via integral transformer

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Type Of Operator:

pull : spring return, center : stay put, push : spring return

China Rohs Regulation:

X

Bezel Material:

metal

Mounting Diameter:

30 mm

Mercury Free:

Yes

Contacts Type And Composition:

1 NC late break + 1 NC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Light Block Supply:

without supply

Device Presentation:

complete product

Bulb Base:

BA 9s

Nema Degree Of Protection:

NEMA 1/2/3/3R/4/6/12/13

Sustainable Offer Status:

Green Premium product

[Ie] Rated Operational Current:

10 A, AC-15 || 10 A, DC-13

Contact Operation:

late-break

Environmental Disclosure:

ENVPEP121006EN

Supply Frequency:

50...60 Hz

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Brochure:

View

Datasheet:

View
