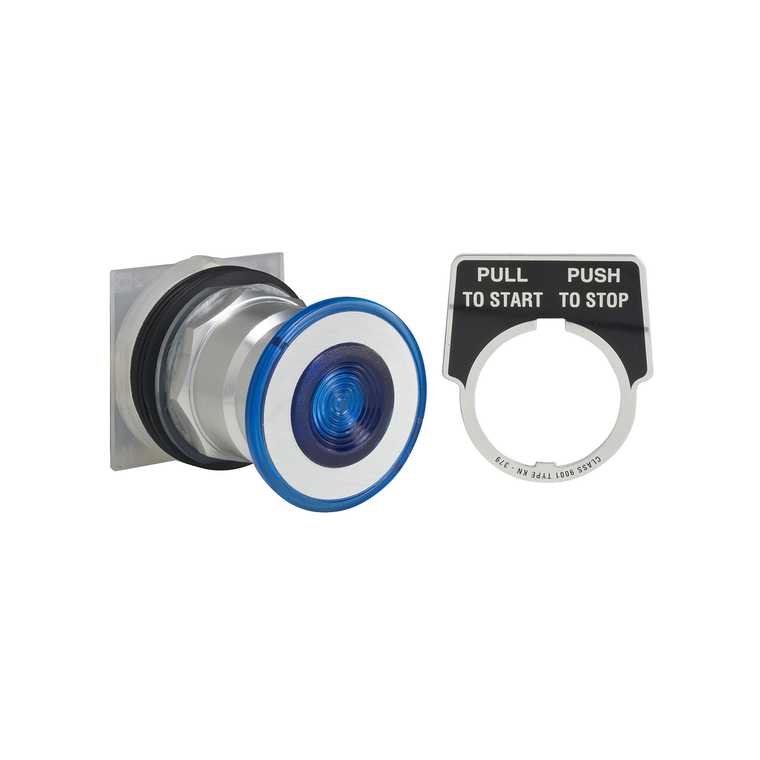

Schneider Electric 9001KR8P35LRRH25 Push Button 600Vac 10A 30Mm T-K

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001KR8P35LRRH25 Push Button 600Vac 10A 30Mm T-K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KR8P35LRRH25

UPC:

785901289739

MPN:

Condition:

New

Light Source:

LED

Rohs Exemption Information:

Yes

Operator Profile:

mushroom Ø 41 mm

Device Presentation:

complete product

Contact Operation:

late-break

Bezel Material:

metal

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Size:

30 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Contacts Type And Composition:

1 NC late break + 1 NC

Warranty:

18 months

Product Certifications:

CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR || CE

China Rohs Regulation:

X

Mercury Free:

Yes

Operator Additional Information:

screw-on plastic

Bulb Base:

BA 9s

Operator Position Information:

3 positions

Light Block Supply:

without supply

Mounting Diameter:

30 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP121006EN

Type Of Operator:

pull : spring return, center : stay put, push : spring return

[Us] Rated Supply Voltage:

24...28 V

Sustainable Offer Status:

Green Premium product

Cap/Operator Or Lens Colour:

red

Device Short Name:

K

Product Or Component Type:

illuminated push-button

Light Source Colour:

red

[Ie] Rated Operational Current:

10 A, AC-15 || 10 A, DC-13

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

N/A

Nema Degree Of Protection:

NEMA 1/2/3/3R/4/6/12/13

Range Of Product:

Harmony 9001K
