Schneider Electric 9001KR9GH13 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$188.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

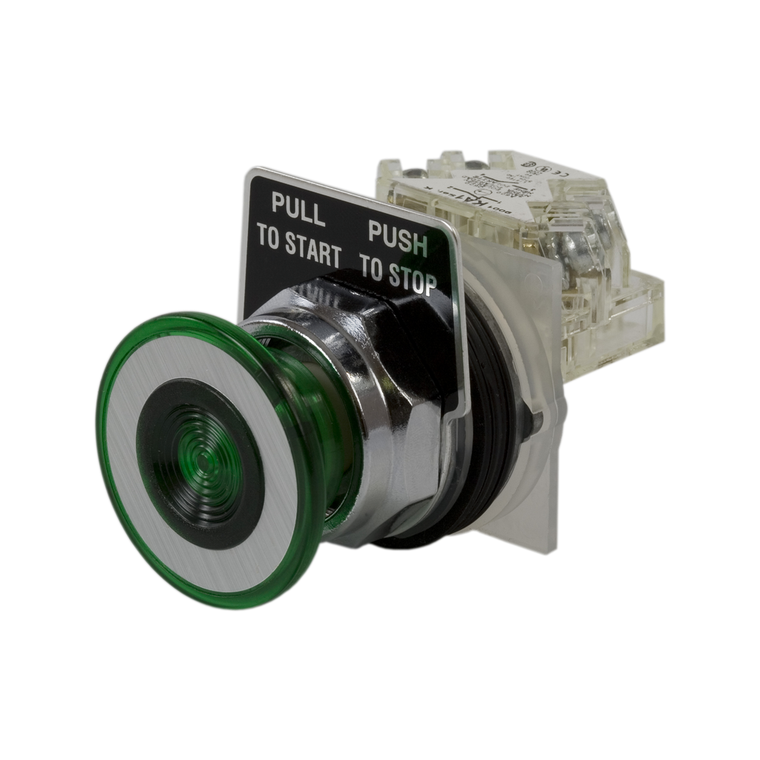

Schneider Electric 9001KR9GH13 Push Button 600Vac 10A 30Mm T-K
This Harmony 9001K, modular green push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape and 40mm mushroom head and 1 x NO + 1 x NC contacts. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
- Operating Position:
- any position
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Type of Operator:
- push-pull
- Mounting Diameter:
- 30 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Contact Operation:
- standard
- Product Certifications:
- CSA LR 25490 class 3211 03 || CE || NEMA || UL listed file E42259 CCN NKCR
- Cap/Operator Or Lens Colour:
- green
- Sustainable Offer Status:
- Green Premium product
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Device Presentation:
- complete product
- China Rohs Regulation:
- X
- Connections - Terminals:
- screw clamp terminals
- Operator Profile:
- green mushroom à 41 mm
- Device Short Name:
- K
- Bezel Material:
- metal
- Light Source:
- without
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Size:
- 30 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Operator Profile:
- mushroom à 41 mm
- Contacts Type And Composition:
- 1 C/O
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP121006EN
- Product Or Component Type:
- push-button
- Operator Additional Information:
- screw-on plastic
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Range Of Product:
- Harmony 9001K
- Light Block Supply:
- without supply
- Operator Position Information:
- 2 positions
- Circularity Profile:
- N/A
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
