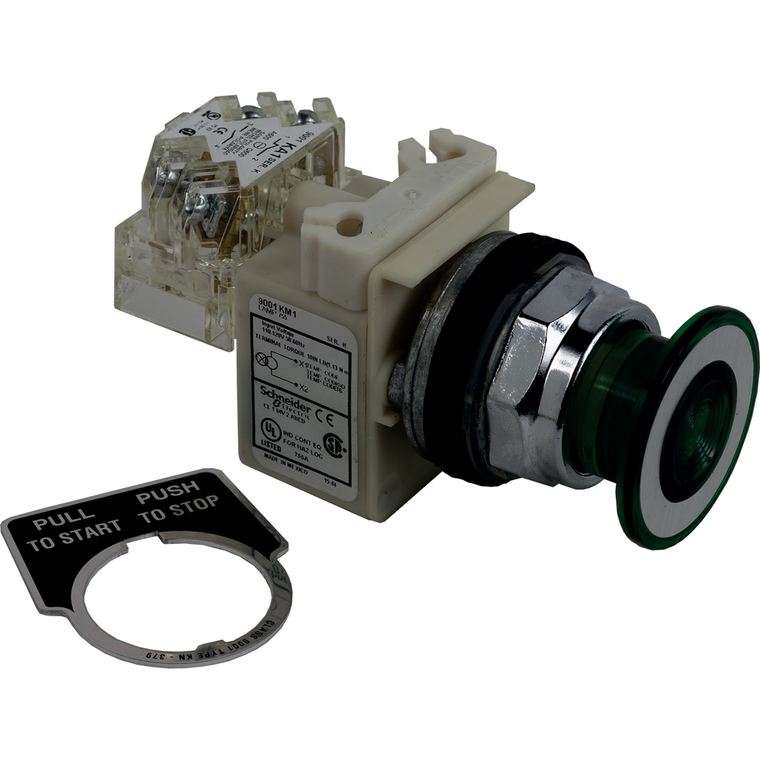

Schneider Electric 9001KR9P1GH13 Push Button 600Vac 10A 30Mm T-K

(No reviews yet) Write a Review
SKU:
9001KR9P1GH13
UPC:
785901034155
Condition:
New
Sustainable Offer Status:
Green Premium product
Operator Profile:
green mushroom Ø 41 mm
Device Presentation:
complete product
Product Certifications:
CE || UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || NEMA
Type of Operator:
push-pull
[Us] Rated Supply Voltage:
110...120 V AC
Environmental Disclosure:
ENVPEP121006EN
Light Source:
incandescent
Operator Profile:
mushroom Ø 41 mm
Mounting Diameter:
30 mm
Mercury Free:
Yes
Connections - Terminals:
screw clamp terminals
Bezel Material:
metal
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity Profile:
N/A
Cap/Operator Or Lens Colour:
green
Range Of Product:
Harmony 9001K
Bulb Base:
BA 9s
Rohs Exemption Information:
Yes
Product Or Component Type:
illuminated push-button
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Light Source:
incandescent bulb
Warranty:
18 months
Operating Position:
any position
Contacts Type And Composition:
1 C/O
[Us] Rated Supply Voltage:
110...120 V
Supply Frequency:
50...60 Hz
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Operator Position Information:
2 positions
China Rohs Regulation:
X
Light Block Supply:
via integral transformer
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
Size:
30 mm
Device Short Name:
K
Operator Additional Information:
screw-on plastic
Contact Operation:
standard
[Ie] Rated Operational Current:
10 A, AC-15 || 10 A, DC-13
Brochure:
View
Datasheet:
View
$316.00

Description

This Harmony 9001K, modular illuminated green push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with 110V AC integral LED. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
