Schneider Electric 9001KR9P38RH13 Push Button 600Vac 10A 30Mm T-K
Schneider Electric
$283.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

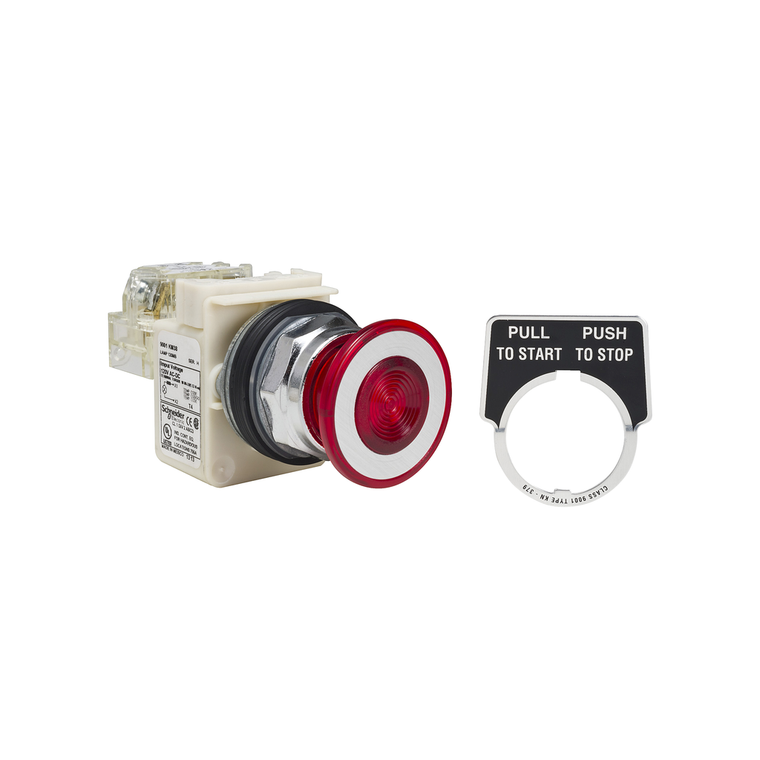

Schneider Electric 9001KR9P38RH13 Push Button 600Vac 10A 30Mm T-K
This mushroom shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs It weights 0.185 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Light Block Supply:
- full voltage or resistor
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Presentation:
- complete product
- Circularity Profile:
- N/A
- Device Short Name:
- K
- Product Certifications:
- CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR || CE
- Warranty:
- 18 months
- Cap/Operator Or Lens Colour:
- red
- Bezel Material:
- metal
- Sustainable Offer Status:
- Green Premium product
- [Us] Rated Supply Voltage:
- 120 V
- Operator Position Information:
- 2 positions
- Operator Profile:
- mushroom à 41 mm
- [Ie] Rated Operational Current:
- 10 A, AC-15 || 10 A, DC-13
- Bulb Base:
- BA 9s
- Contact Operation:
- standard
- Light Block Supply:
- without supply
- Light Source:
- incandescent bulb
- Operator Additional Information:
- screw-on plastic
- Mercury Free:
- Yes
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Mounting Diameter:
- 30 mm
- Rohs Exemption Information:
- Yes
- Type Of Operator:
- push-pull
- Range Of Product:
- Harmony 9001K
- Product Or Component Type:
- illuminated push-button
- Size:
- 30 mm
- Environmental Disclosure:
- ENVPEP121006EN
- Contacts Type And Composition:
- 1 C/O
- China Rohs Regulation:
- X
- Brochure:
- View
- Datasheet:
- View
