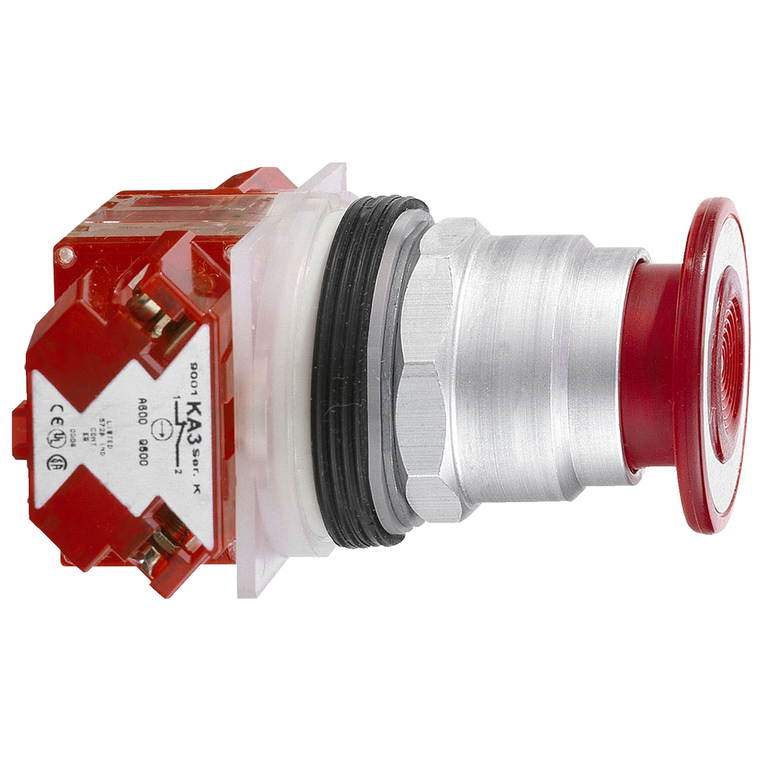

Schneider Electric 9001KR9R20H6 Push Button 600Vac 10A 30Mm T-K

Schneider Electric 9001KR9R20H6 Push Button 600Vac 10A 30Mm T-K

Schneider Electric
SKU:
9001KR9R20H6
|
UPC:
3389118040038
$165.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony 9001K, modular red push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape and 40mm mushroom head and 1 x NC contact. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Additional Information
Environmental Disclosure:
ENVPEP121006EN
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
Size:
30 mm
Operating Position:
any position
Protective Treatment:
TC
Device Presentation:
complete product
Shape Of Signaling Unit Head:
round
Mechanical Durability:
5000000 cycles
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV EN/IEC 60947-1
Operator Profile:
red mushroom Ø 35 mm, unmarked
Mounting Diameter:
30 mm
Product Or Component Type:
push-button
Cap/Operator Or Lens Colour:
red
Circularity Profile:
N/A
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Shape Of Screw Head:
cross slotted
Contacts Material:
silver alloy contacts
Contact Operation:
standard
Positive Opening:
with IEC 60947-5-2
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Connections - Terminals:
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Operator Additional Information:
metal guard
Range Of Product:
Harmony 9001K
Contacts Type And Composition:
1 NC
Rated Breaking Capacity:
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Short-Circuit Protection:
10 A cartridge fuse EN/IEC 60947-5-1
Bezel Material:
metal
[Icm] Rated Short-Circuit Making Capacity:
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Net Weight:
0.141 kg
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Head Material:
plastic
Operator Profile:
mushroom Ø 35 mm
Ip Degree Of Protection:
IP66 IEC 60529
Product Certifications:
NEMA || UL 508
Standards:
EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Operator Position Information:
2 positions
Ambient Air Temperature For Storage:
-40-70 °C
Overvoltage Category:
class II IEC 61140
Mercury Free:
Yes
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Shock Resistance:
50 gn IEC 60068-2-27
Device Short Name:
9001K
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
X
Tightening Torque:
0.8-0.8 N.m EN/IEC 60947-1
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-25-70 °C
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Brochure:
View
Datasheet:
View
