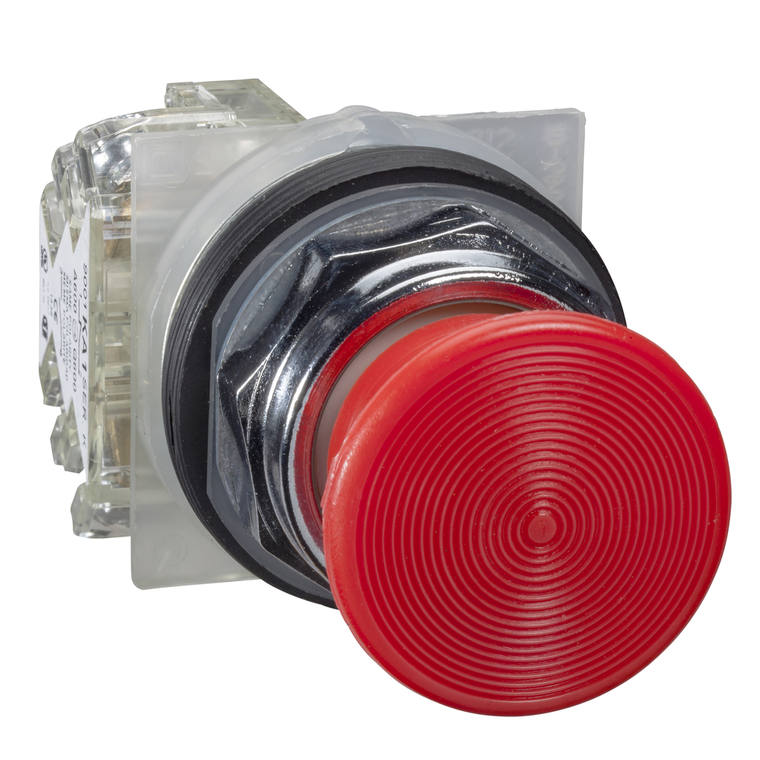

Schneider Electric 9001KR9R94H13 Pushbutton 30Mm K

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001KR9R94H13 Pushbutton 30Mm K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KR9R94H13

UPC:

3389110957105

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Cad Overall Width:

46 mm

Warranty:

18 months

Rohs Exemption Information:

Yes

Operator Position Information:

2 positions

Operating Position:

any position

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Overvoltage Category:

class II IEC 61140

Mounting Diameter:

30 mm

Standards:

EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14

Range Of Product:

Harmony 9001K

Cap/Operator Or Lens Colour:

red

Operator Additional Information:

screw-on plastic with set screw

Ip Degree Of Protection:

IP66 IEC 60529

Terminals Description Iso N°1:

(13-14-11-12)OF

Operator Profile:

red mushroom Ø 41 mm, unmarked

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Presentation:

complete product

Ambient Air Temperature For Operation:

-25-70 °C

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

Contacts Material:

silver alloy contacts

[Icm] Rated Short-Circuit Making Capacity:

12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Shape Of Signaling Unit Head:

round

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV EN/IEC 60947-1

Shock Resistance:

50 gn IEC 60068-2-27

Ambient Air Temperature For Storage:

-40-70 °C

Bezel Material:

metal

Head Material:

plastic

Short-Circuit Protection:

10 A cartridge fuse EN/IEC 60947-5-1

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

Mechanical Durability:

5000000 cycles

China Rohs Regulation:

X

Circularity Profile:

N/A

Shape Of Screw Head:

cross slotted

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Tightening Torque:

0.8-0.8 N.m EN/IEC 60947-1

Product Or Component Type:

push-button

Net Weight:

0.141 kg

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

Rated Breaking Capacity:

3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Protective Treatment:

TC

Size:

30 mm

Positive Opening:

without

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

Operator Profile:

mushroom Ø 41 mm

Cad Overall Height:

45 mm

Device Short Name:

9001K

Product Certifications:

UL 508 || NEMA

Environmental Disclosure:

ENVPEP121006EN

Contacts Type And Composition:

1 C/O

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Cad Overall Depth:

74 mm
