Schneider Electric

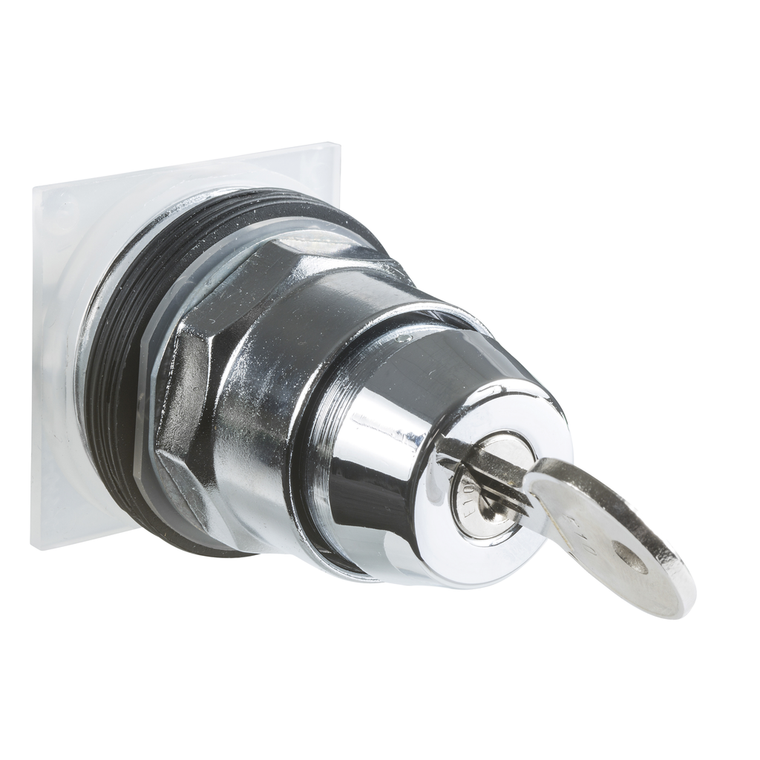

Schneider Electric 9001KS11K1H1 Selector Switch 600Vac 10A 30Mm T-K

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric 9001KS11K1H1 Selector Switch 600Vac 10A 30Mm T-K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001KS11K1H1

UPC:

785901034797

MPN:

Condition:

New

Mounting Diameter:

30 mm

Range Of Product:

Harmony 9001K

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Contacts Type And Composition:

1 C/O

Nema Degree Of Protection:

NEMA 1/2/3/3R/4/6/12/13

Product Certifications:

CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR

Bezel Material:

metal

Circularity Profile:

N/A

Type Of Operator:

stay put

Rohs Exemption Information:

Yes

Device Presentation:

complete product

Product Or Component Type:

selector switch

Connections - Terminals:

screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1

Key Number:

E10

Operator Profile:

key switch

Cam Profile:

5

Key Withdrawal Position:

left

China Rohs Regulation:

X

Sustainable Offer Status:

Green Premium product

Operator Position Information:

2 positions

Size:

30 mm

Type Of Operator:

maintained

Operator Profile:

black key operated knob

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP121006EN

Mercury Free:

Yes

Device Short Name:

K

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Brochure:

View

Catalog:

View

Datasheet:

View
