Schneider Electric

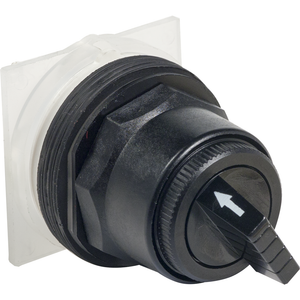

Schneider Electric 9001KS34B 30Mm Selector Switch 2 Position

SKU:

9001KS34B

UPC:

3.38912E+12

MPN:

Condition:

New

Contacts Type And Composition:

without contact block

Warranty:

18 months

Product Certifications:

CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03

Environmental Disclosure:

ENVPEP121006EN

Type of Operator:

spring return

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Diameter:

30 mm

China Rohs Regulation:

X

Device Short Name:

K

Operator Position Information:

2 positions

Return:

right to left

Operator Profile:

standard handle

Circularity Profile:

N/A

Sustainable Offer Status:

Green Premium product

Cap/Operator Or Lens Colour:

black

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

head for selector switch

Device Presentation:

basic element

Cam Profile:

4

Range Of Product:

Harmony 9001K

Nema Degree Of Protection:

NEMA 1/2/3/3R/4/6/12/13

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Bezel Material:

metal

Operator Profile:

black standard knob

Size:

30 mm
