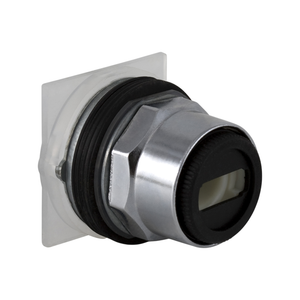

Schneider Electric 9001KS59B Selector Switch Operator 30Mm T-K
SKU:
9001KS59B
UPC:
7.85901E+11
MPN:
Condition:
New
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Operator Profile:
1 projecting push-button
Size:
30 mm
Sustainable Offer Status:
Green Premium product
Contacts Type And Composition:
without contact block
Warranty:
18 months
Operator Position Information:
3 positions
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Type Of Operator:
spring return
Device Short Name:
K
Type Of Operator:
spring return both sides to centre
Cap/Operator Or Lens Colour:
black
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP121006EN
Enclosure Type:
dust and oil resistant weatherproof enclosure indoor/outdoor
Circularity Profile:
N/A
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/6/12/13
Mounting Diameter:
30 mm
Bezel Material:
metal
Operator Profile:
standard handle
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Of Product:
Harmony 9001K
Mercury Free:
Yes
Product Certifications:
UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
Product Or Component Type:
head for selector switch
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK...
This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to...
