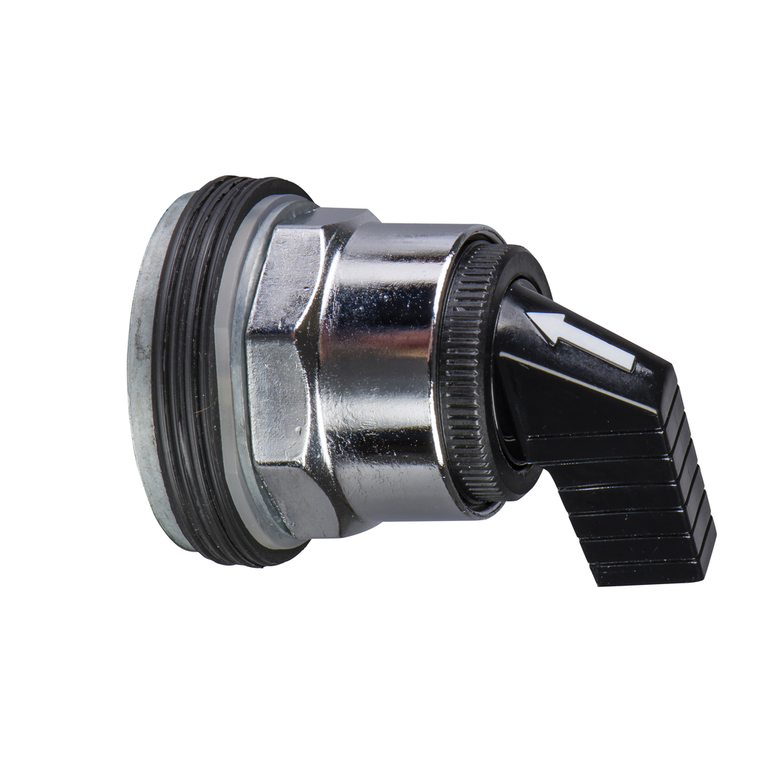

Schneider Electric 9001KS88BH4 Selector Switch 600Vac 10A 30Mm Type K
Schneider Electric
$246.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This selector switch provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
- China Rohs Regulation:
- X
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Product Certifications:
- CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Warranty:
- 18 months
- Type Of Operator:
- maintained
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/6/12/13
- Operator Profile:
- standard handle
- Operator Profile:
- black standard knob
- Mounting Diameter:
- 30 mm
- Range Of Product:
- Harmony 9001K
- Contacts Type And Composition:
- 4 C/O
- Environmental Disclosure:
- ENVPEP121006EN
- Product Or Component Type:
- selector switch
- Bezel Material:
- metal
- Device Presentation:
- complete product
- Cap/Operator Or Lens Colour:
- black
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Short Name:
- K
- Size:
- 30 mm
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cam Profile:
- 8
- Operator Position Information:
- 4 positions
- Connections - Terminals:
- screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Circularity Profile:
- N/A
- Type Of Operator:
- stay put
- Rohs Exemption Information:
- Yes
- Catalog:
- View
- Datasheet:
- View
