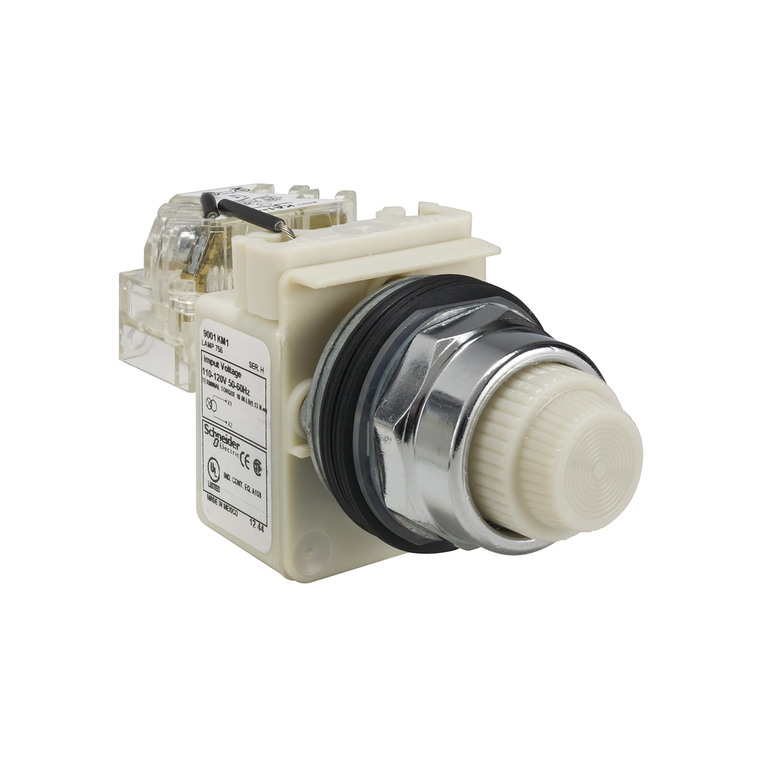

Schneider Electric 9001KT1W31 Pilot Light 120Vac 30Mm Type K +Options
SKU:
9001KT1W31
UPC:
785901036029
MPN:
Condition:
New
Operating Mode:
push-to-test
Rohs Exemption Information:
Yes
Warranty:
18 months
Lens Material:
polycarbonate
Mounting Diameter:
30 mm
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Supply Frequency:
50...60 Hz
Cap/Operator Or Lens Colour:
white
Circularity Profile:
N/A
Light Source:
incandescent bulb
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage:
110...120 V
Environmental Disclosure:
ENVPEP121006EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Lens Type:
fresnel plastic
Bulb Base:
BA 9s
Shape Of Screw Head:
round
Size:
30 mm
Light Block Supply:
via transformer 110 V AC 50/60 Hz || via transformer 120 V AC 50/60 Hz
Device Short Name:
K
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Light Block Supply:
via integral transformer
Lens Type:
fresnel
Bezel Material:
metal
Product Or Component Type:
push-to-test pilot light
Contacts Type And Composition:
1 C/O
China Rohs Regulation:
X
Product Certifications:
UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03 || CE
This Harmony 9001K, white pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides...
