Schneider Electric

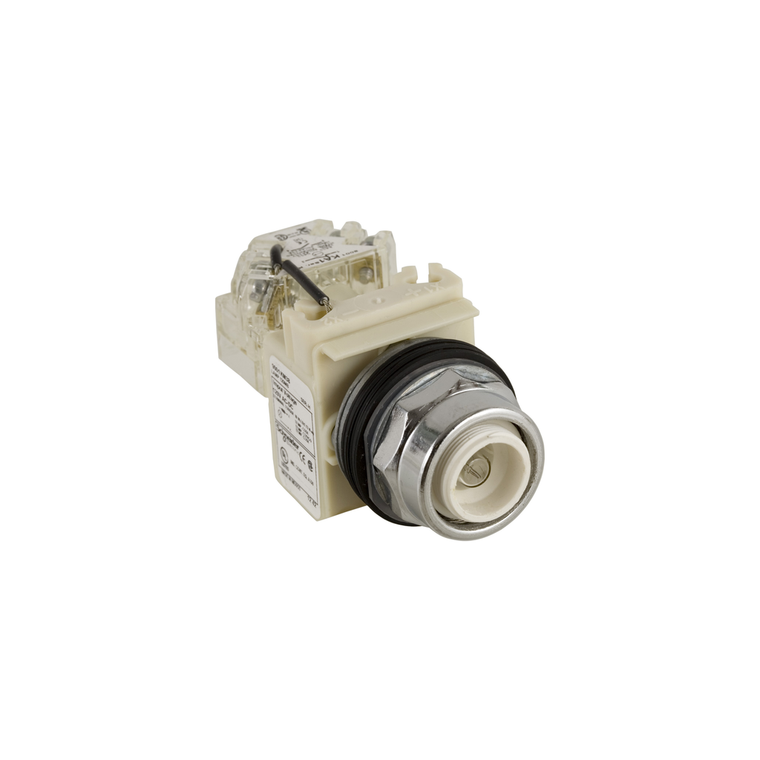

Schneider Electric 9001KT38 Pilot Light 120Vac 30Mm Type K +Options

SKU:

9001KT38

UPC:

3389118039148

MPN:

Condition:

New

Bulb Base:

BA 9s

Product Certifications:

UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03 || CE

Cap/Operator Or Lens Colour:

without cap

Environmental Disclosure:

ENVPEP121006EN

Operating Mode:

push-to-test

Nema Degree Of Protection:

NEMA 1/2/3/3R/4/6/12/13

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

120 V

Warranty:

18 months

Light Block Supply:

full voltage 120 V

China Rohs Regulation:

X

Size:

30 mm

Device Short Name:

K

Bezel Material:

metal

Product Or Component Type:

head for push-to-test pilot light

Range Of Product:

Harmony 9001K

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Contacts Type And Composition:

1 C/O

Shape Of Screw Head:

round

Mercury Free:

Yes

Light Block Supply:

full voltage or resistor

Sustainable Offer Status:

Green Premium product

Light Source:

incandescent bulb

Rohs Exemption Information:

Yes

Mounting Diameter:

30 mm

Circularity Profile:

N/A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Brochure:

View

Datasheet:

View
