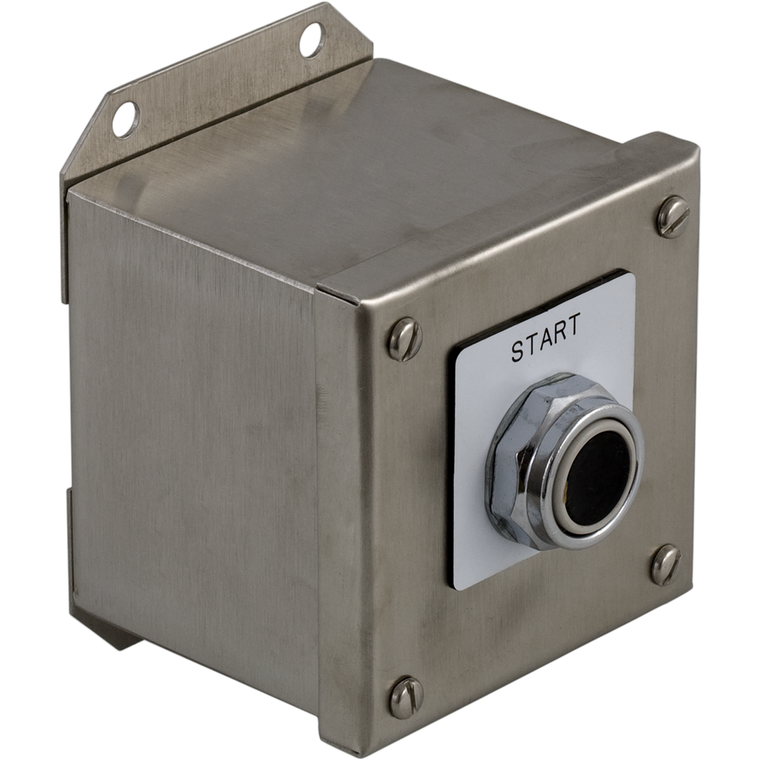

Schneider Electric 9001KYSS101 Control Station + Operators
Schneider Electric
$342.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This complete control station with two pushbuttons provides an ergonomic interface for your machines The control station is composed of one push-button momentary 1 NO/1 NC, and it is connected to control circuits with classic screw-clamp connections It can be used indoor It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, Type 3, 4 and 13)
- Contact Block Name:
- KA1
- Enclosure/Cubicle Description:
- wall-mounted enclosure 1 cut-out à 30 mm
- Range Of Product:
- Harmony 9001KY
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- China Rohs Regulation:
- X
- Connections - Terminals:
- direct connection AWG 2) solid stranded || direct connection AWG 12) solid stranded || direct connection AWG 24) solid stranded
- Level Or Class:
- Class II Division 2 Group G || class III
- Type Of Installation:
- indoor/outdoor
- [Ue] Rated Operational Voltage:
- 300 V
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Mechanical Interlocking:
- without mechanical interlock
- Sustainable Offer Status:
- Green Premium product
- Control Station Composition:
- 1 push-button momentary 1 NO/1 NC
- Rohs Exemption Information:
- Yes
- Device Short Name:
- 9001KY
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -25-60 °C
- Circularity Profile:
- N/A
- Connector Type:
- screw clamp connector
- Provided Equipment:
- label plate START
- Ambient Air Temperature For Storage:
- -40-70 °C
- Enclosure Material:
- Stainless Steel
- Toxic Heavy Metal Free:
- Yes
- Nema Degree Of Protection:
- NEMA 3 || NEMA 13 || NEMA 4 || NEMA 1
- Environmental Disclosure:
- ENVPEP121029EN
- Product Certifications:
- UL Listed
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Characteristic:
- resistant against immersion in water || dust and oil resistant
- Product Specific Application:
- for hoisting and mechanical handling applications
- [Ie] Rated Operational Current Ac:
- 0.416666666666667
- Product Or Component Type:
- control station
- Catalog:
- View
- Datasheet:
- View
