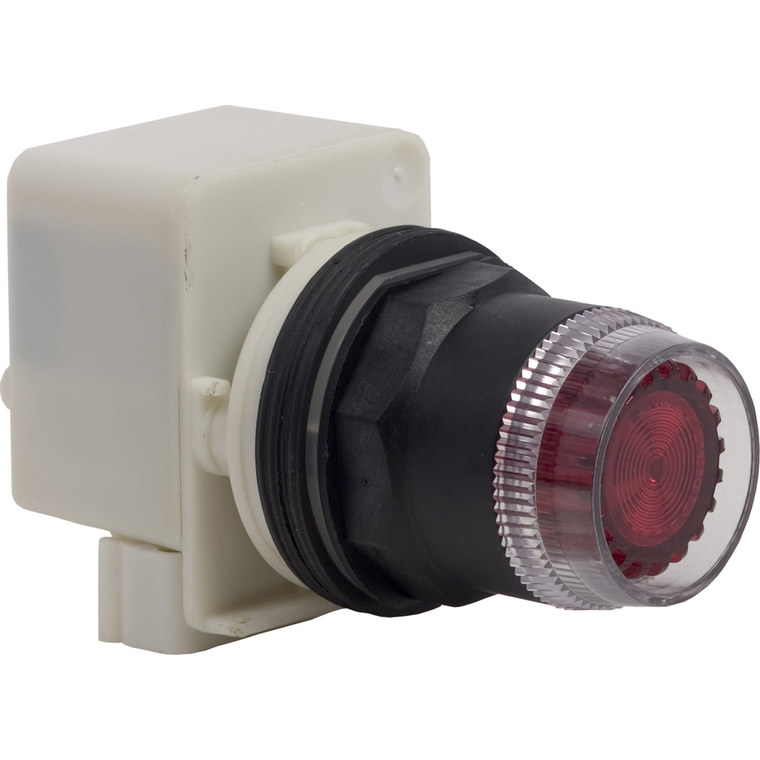

Schneider Electric 9001SK1L1R Pushbutton Operator 30Mm Sk +Options
Schneider Electric
$167.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony 9001SK, modular illuminated flush red push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Operator Additional Information:
- plastic guard
- Contacts Type And Composition:
- without contact block
- Ip Degree Of Protection:
- IP64
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Light Block Supply:
- via transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz
- Environmental Disclosure:
- ENVPEP121005EN
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Device Short Name:
- 9001SK
- Supply Frequency:
- 50...60 Hz
- [Us] Rated Supply Voltage:
- 110...120 V
- Type Of Operator:
- spring return
- Bulb Base:
- BA 9s
- China Rohs Regulation:
- X
- Bezel Material:
- plastic
- Light Block Supply:
- via integral transformer
- Light Source:
- incandescent bulb
- Operator Profile:
- flush
- Circularity Profile:
- N/A
- Range Of Product:
- Harmony 9001SK
- Product Or Component Type:
- head for illuminated push-button
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Signaling Unit Head:
- octagonal
- Nema Degree Of Protection:
- NEMA 1/2/3/3R/4/4X/6/12/13
- Cap/Operator Or Lens Colour:
- red
- Size:
- 30 mm
- Mounting Diameter:
- 30 mm
