Schneider Electric

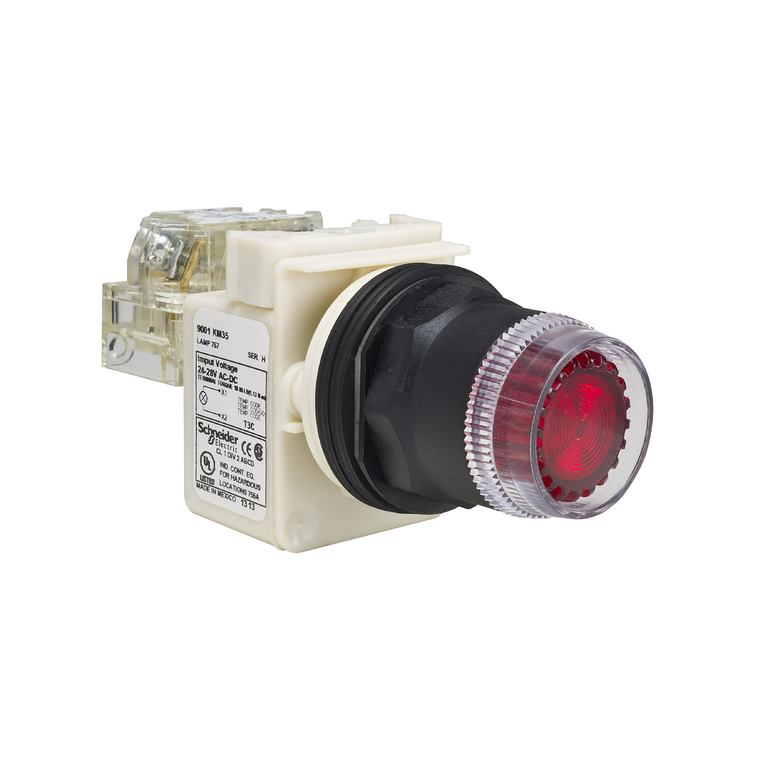

Schneider Electric 9001SK2L35LRRH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

SKU:

9001SK2L35LRRH13

UPC:

785901463139

MPN:

Condition:

New

Rated Breaking Capacity:

1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Light Source Colour:

red

Type of Operator:

spring return

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP121005EN

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Shock Resistance:

50 gn IEC 60068-2-27

Sustainable Offer Status:

Green Premium product

Light Block Supply:

direct

Warranty:

18 months

Operator Additional Information:

without guard

Mechanical Durability:

5000000 cycles

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

Operator Profile:

projecting

Contacts Material:

silver alloy contacts

Ip Degree Of Protection:

IP66 IEC 60529

Operator Profile:

red projecting

Light Source:

LED

Device Presentation:

complete product

[Us] Rated Supply Voltage:

24...28 V

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Toxic Heavy Metal Free:

Yes

Connections - Terminals:

screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

Standards:

JIS C 4520 || UL 508 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1

Ambient Air Temperature For Operation:

-25-70 °C

Contact Operation:

standard

Range Of Product:

Harmony 9001SK

Contacts Type And Composition:

1 C/O

Ambient Air Temperature For Storage:

-40-70 °C

Short-Circuit Protection:

10 A cartridge fuse EN/IEC 60947-5-1

Mercury Free:

Yes

Reach Free Of Svhc:

Yes

[Icm] Rated Short-Circuit Making Capacity:

0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA

Shape Of Screw Head:

cross slotted

Net Weight:

0.181 kg

Protective Treatment:

TC

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV EN/IEC 60947-1

Circularity Profile:

N/A

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Bulb Base:

BA 9s

[Us] Rated Supply Voltage:

24...28 V AC/DC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Shock Protection Class:

class II IEC 61140

Operating Position:

any position

Mounting Diameter:

30 mm

Cap/Operator Or Lens Colour:

red

Bezel Material:

plastic

Product Or Component Type:

illuminated push-button

Tightening Torque:

0.8-0.8 N.m EN/IEC 60947-1

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Certifications:

UL 508 || NEMA

Device Short Name:

9001SK

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Rohs Exemption Information:

Yes

[Ie] Rated Operational Current:

0.55 A 125 V, DC-13, A600-Q600 NEMA
