Schneider Electric

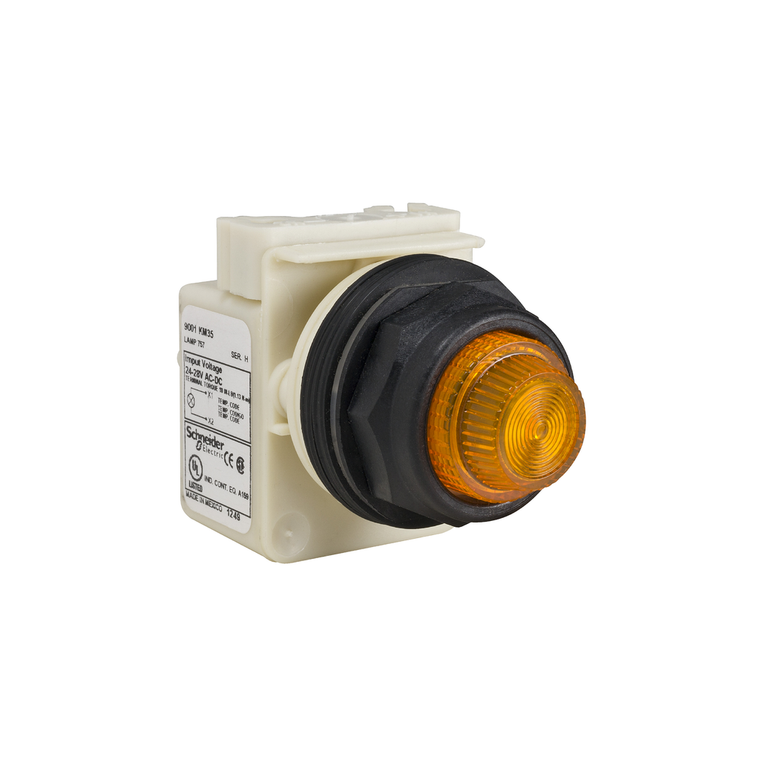

Schneider Electric 9001SKP35A31 Pilot Light 28V 30Mm Sk +Options

(No reviews yet) Write a Review
SKU:
9001SKP35A31
UPC:
785901041283
Condition:
New
Cad Overall Width:
54 mm
Device Presentation:
complete product
Bulb Base:
BA 9s
Environmental Disclosure:
ENVPEP1710019EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shape Of Signaling Unit Head:
round
Operating Mode:
normal
[Us] Rated Supply Voltage:
24...28 V
Lens Type:
fresnel
Operating Position:
any position
Reach Free Of Svhc:
Yes
Rohs Exemption Information:
Yes
Range Of Product:
Harmony 9001SK
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Warranty:
18 months
Lens Material:
polycarbonate
Size:
30 mm
Mounting Diameter:
30 mm
Light Source:
incandescent bulb
Protective Treatment:
TC
Mercury Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Toxic Heavy Metal Free:
Yes
Cad Overall Depth:
42 mm
Circularity Profile:
ENVEOLI1710019EN
Light Block Supply:
full voltage 28 V || direct 24 V
Lens Type:
fresnel plastic
Light Source:
incandescent
Sustainable Offer Status:
Green Premium product
Cad Overall Height:
70 mm
Light Block Supply:
full voltage
[Us] Rated Supply Voltage:
24...28 V AC/DC
Cap/Operator Or Lens Colour:
amber
Product Or Component Type:
pilot light
Ip Degree Of Protection:
IP66
Bezel Material:
plastic
Brochure:
View
Datasheet:
View
$125.00

Description

This Harmony 9001SK, amber pilot light with plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
