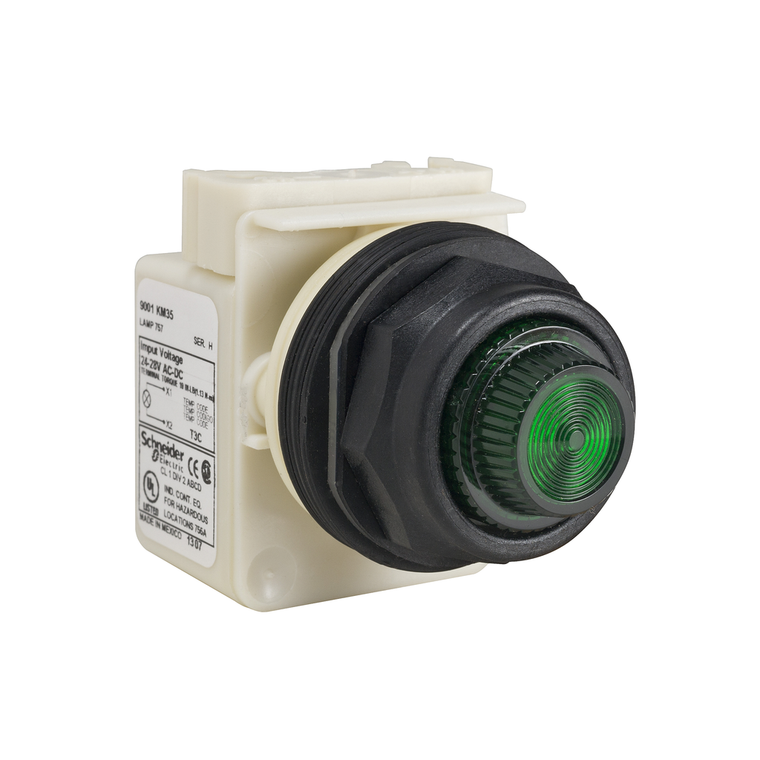

Schneider Electric 9001SKP35G31 Pilot Light 28V 30Mm Sk +Options

Schneider Electric 9001SKP35G31 Pilot Light 28V 30Mm Sk +Options

Schneider Electric
SKU:
9001SKP35G31
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$125.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony 9001SK, green pilot light with plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Additional Information
Warranty:
18 months
Product Or Component Type:
pilot light
Ip Degree Of Protection:
IP66
Range Of Product:
Harmony 9001SK
[Us] Rated Supply Voltage:
24...28 V
Bezel Material:
plastic
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Cad Overall Height:
70 mm
Lens Material:
polycarbonate
Mounting Diameter:
30 mm
Circularity Profile:
ENVEOLI1710019EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operating Position:
any position
Cap/Operator Or Lens Colour:
green
Size:
30 mm
Light Source:
incandescent
Bulb Base:
BA 9s
Cad Overall Depth:
42 mm
Lens Type:
fresnel
China Rohs Regulation:
X
Operating Mode:
normal
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Presentation:
complete product
Light Source:
incandescent bulb
Cad Overall Width:
54 mm
Sustainable Offer Status:
Green Premium product
Light Block Supply:
full voltage 28 V || direct 24 V
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
[Us] Rated Supply Voltage:
24...28 V AC/DC
Lens Type:
fresnel plastic
Toxic Heavy Metal Free:
Yes
Protective Treatment:
TC
Shape Of Signaling Unit Head:
round
Light Block Supply:
full voltage
Environmental Disclosure:
ENVPEP1710019EN
Rohs Exemption Information:
Yes
Brochure:
View
Catalog:
View
Datasheet:
View
