Schneider Electric 9001SKP35LWW31 Pilot Light Led 30Mm Sk +Options
Schneider Electric
$153.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

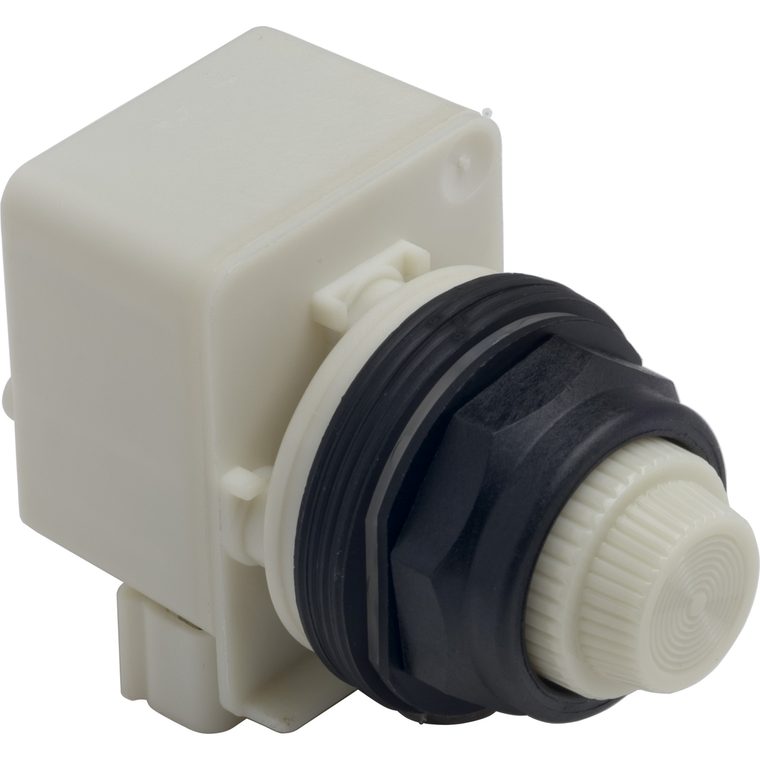

Schneider Electric 9001SKP35LWW31 Pilot Light Led 30Mm Sk +Options
This Harmony 9001SK, white pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Shape Of Signaling Unit Head:
- round
- Bulb Base:
- BA 9s
- Range Of Product:
- Harmony 9001SK
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- [Us] Rated Supply Voltage:
- 24...28 V AC/DC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Size:
- 30 mm
- Cap/Operator Or Lens Colour:
- white
- Cad Overall Width:
- 54 mm
- Light Source:
- LED
- Circularity Profile:
- ENVEOLI1710019EN
- Mercury Free:
- Yes
- Environmental Disclosure:
- ENVPEP1710019EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Lens Material:
- polycarbonate
- Lens Type:
- fresnel
- Bezel Material:
- plastic
- Cad Overall Depth:
- 42 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Light Source:
- White LED
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP66
- Device Presentation:
- complete product
- Toxic Heavy Metal Free:
- Yes
- Cad Overall Height:
- 70 mm
- Operating Position:
- any position
- Product Or Component Type:
- pilot light
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operating Mode:
- normal
- Light Block Supply:
- direct 24 V || direct 28 V
- [Us] Rated Supply Voltage:
- 24...28 V
- Sustainable Offer Status:
- Green Premium product
- Protective Treatment:
- TC
- Light Source Colour:
- white
- Lens Type:
- fresnel plastic
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 30 mm
- Brochure:
- View
- Datasheet:
- View
