Schneider Electric 9001SKP38LGG31 Pilot Light 120V 30Mm Sk +Options
Schneider Electric
$153.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 9001SKP38LGG31 Pilot Light 120V 30Mm Sk +Options

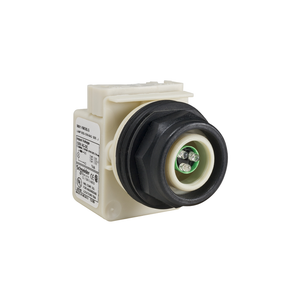

This Harmony 9001SK, green pilot light with integral LED and plastic fresnel is supplied with 110V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Warranty:
- 18 months
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Height:
- 70 mm
- Cad Overall Width:
- 54 mm
- Light Source:
- Green LED
- Lens Type:
- fresnel
- Cad Overall Depth:
- 42 mm
- Ip Degree Of Protection:
- IP66
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile:
- ENVEOLI1710019EN
- Lens Material:
- polycarbonate
- Mercury Free:
- Yes
- Operating Mode:
- normal
- Product Or Component Type:
- pilot light
- Light Source Colour:
- green
- Light Block Supply:
- direct 120 V
- Light Source:
- LED
- Cap/Operator Or Lens Colour:
- green
- [Us] Rated Supply Voltage:
- 120 V
- Size:
- 30 mm
- Device Presentation:
- complete product
- Lens Type:
- fresnel plastic
- Range Of Product:
- Harmony 9001SK
- Toxic Heavy Metal Free:
- Yes
- [Us] Rated Supply Voltage:
- 120 V AC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Protective Treatment:
- TC
- Environmental Disclosure:
- ENVPEP1710019EN
- Mounting Diameter:
- 30 mm
- Sustainable Offer Status:
- Green Premium product
- Bezel Material:
- plastic
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Bulb Base:
- BA 9s
- Operating Position:
- any position
- Reach Free Of Svhc:
- Yes
- Brochure:
- View
- Datasheet:
- View
