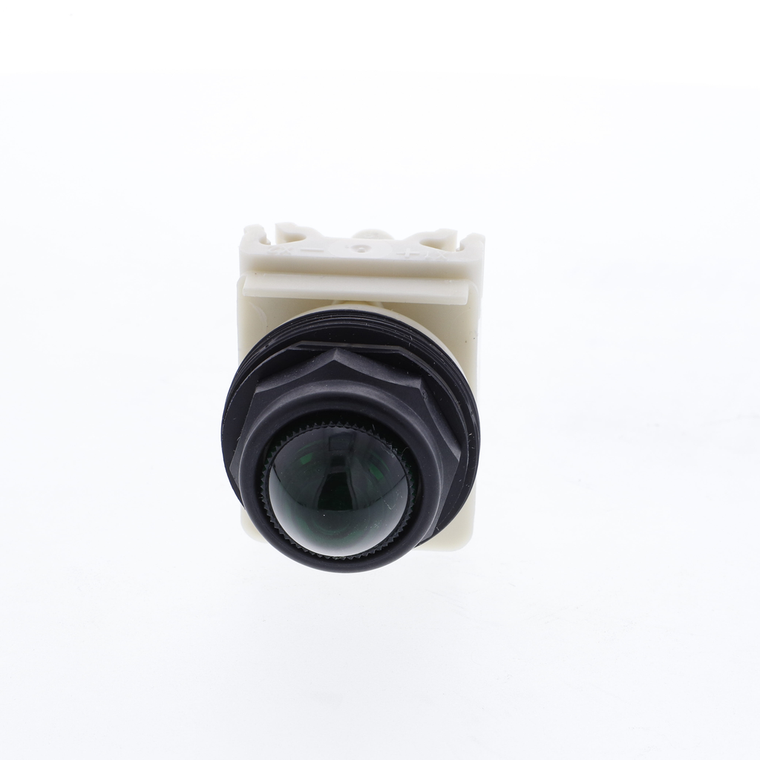

Schneider Electric 9001SKP38LGG9 Pilot Light 120V 30Mm Sk +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001SKP38LGG9 Pilot Light 120V 30Mm Sk +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001SKP38LGG9

UPC:

3389118037311

MPN:

Condition:

New

Operating Position:

any position

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Shape Of Screw Head:

cross slotted

Environmental Disclosure:

ENVPEP1710019EN

Lens Material:

polycarbonate

Short-Circuit Protection:

10 A cartridge fuse EN/IEC 60947-5-1

Toxic Heavy Metal Free:

Yes

Mounting Diameter:

30 mm

Ambient Air Temperature For Operation:

-25-70 °C

[Ui] Rated Insulation Voltage:

250 V 2)EN/IEC 60947-1

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Light Source Colour:

green

Ip Degree Of Protection:

IP66 IEC 60529

Shock Resistance:

50 gn IEC 60068-2-27

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Circularity Profile:

ENVEOLI1710019EN

Size:

30 mm

China Rohs Regulation:

X

Standards:

JIS C 852 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1

Product Or Component Type:

pilot light

Tightening Torque:

0.8-0.8 N.m EN/IEC 60947-1

[Us] Rated Supply Voltage:

120 V

[Us] Rated Supply Voltage:

120 V AC/DC

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV EN/IEC 60947-1

Device Short Name:

9001SK

Light Source:

LED

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Sustainable Offer Status:

Green Premium product

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Range Of Product:

Harmony 9001SK

Lens Type:

domed

Cap/Operator Or Lens Colour:

green

Shape Of Signaling Unit Head:

round

Cad Overall Depth:

42 mm

Bezel Material:

plastic

Product Certifications:

UL 508 || NEMA

Electrical Shock Protection Class:

class II IEC 61140

Bulb Base:

BA 9s

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Device Presentation:

complete product

Protective Treatment:

TC

Lens Type:

domed plastic

Net Weight:

0.082 kg

Warranty:

18 months

Rohs Exemption Information:

Yes

Cad Overall Height:

70 mm

Cad Overall Width:

54 mm

Ambient Air Temperature For Storage:

-40-70 °C

Light Block Supply:

direct 120 V AC/DC
