Schneider Electric 9001SKP38LLL31 Pilot Light 120V 30Mm Type Sk+Opt

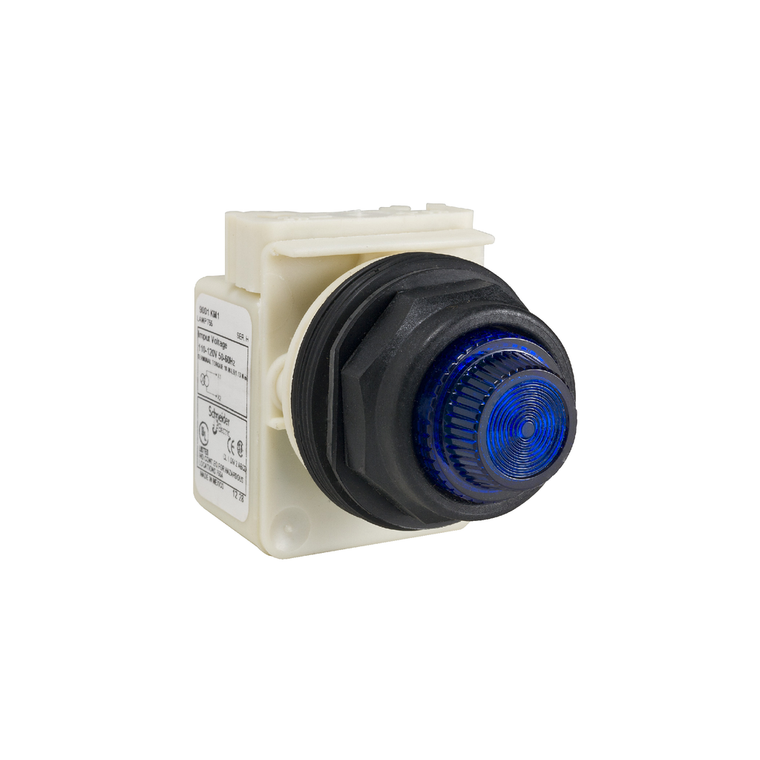

This Harmony 9001SK, blue pilot light with integral LED and plastic fresnel is supplied with 110V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Warranty:
- 18 months
- Light Block Supply:
- direct 120 V AC/DC
- Protective Treatment:
- TC
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Light Source:
- LED
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Screw Head:
- cross slotted
- [Us] Rated Supply Voltage:
- 120 V
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Device Short Name:
- 9001SK
- Environmental Disclosure:
- ENVPEP1710019EN
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Mercury Free:
- Yes
- Electrical Shock Protection Class:
- class II IEC 61140
- Product Or Component Type:
- pilot light
- Size:
- 30 mm
- Bulb Base:
- BA 9s
- Ambient Air Temperature For Storage:
- -40-70 °C
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Range Of Product:
- Harmony 9001SK
- Net Weight:
- 0.181 kg
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Certifications:
- NEMA || UL 508
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-1 || JIS C 852 || CSA C22.2 No 14 || JIS C8201-1
- Mounting Diameter:
- 30 mm
- Toxic Heavy Metal Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Cad Overall Depth:
- 42 mm
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Lens Type:
- fresnel plastic
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529
- Device Presentation:
- complete product
- Light Source Colour:
- blue
- Lens Material:
- polycarbonate
- Cad Overall Width:
- 54 mm
- Sustainable Offer Status:
- Green Premium product
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Cad Overall Height:
- 70 mm
- Cap/Operator Or Lens Colour:
- blue
- Bezel Material:
- plastic
- Light Source:
- Blue LED
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -25-70 °C
- Circularity Profile:
- ENVEOLI1710019EN
- [Us] Rated Supply Voltage:
- 24...28 V AC/DC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Operating Position:
- any position
- Lens Type:
- fresnel
