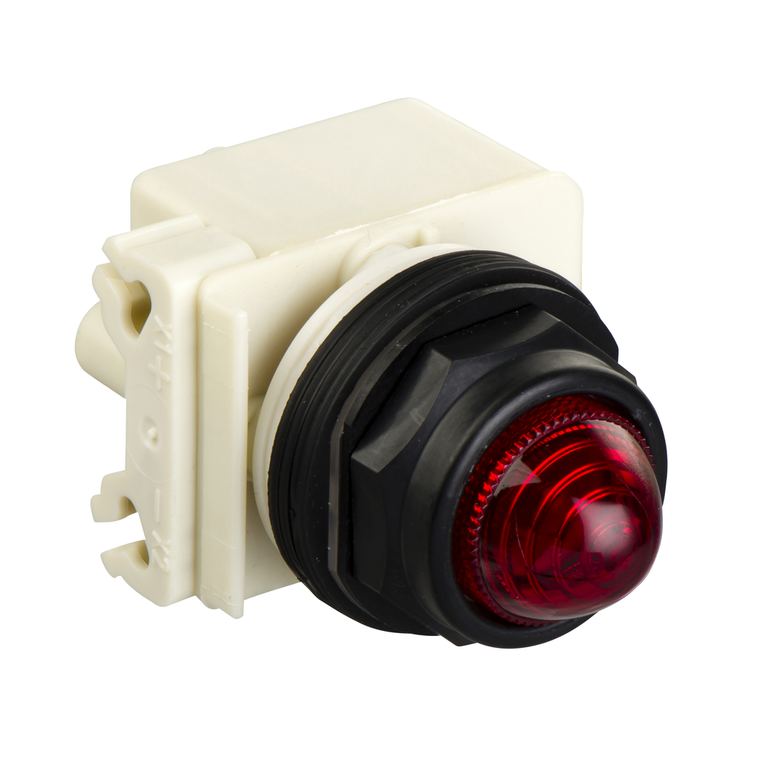

Schneider Electric 9001SKP38LRR9 Pilot Light 120V 30Mm Sk +Options
This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments. It weighs 82g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Bezel Material:
- plastic
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Mercury Free:
- Yes
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mounting Diameter:
- 30 mm
- Environmental Disclosure:
- ENVPEP1710019EN
- Cap/Operator Or Lens Colour:
- red
- Lens Type:
- domed
- Shock Resistance:
- 50 gn IEC 60068-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- [Us] Rated Supply Voltage:
- 120 V AC/DC
- Cad Overall Width:
- 54 mm
- Cad Overall Height:
- 70 mm
- Protective Treatment:
- TC
- Ambient Air Temperature For Operation:
- -25-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Light Source:
- LED
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Standards:
- EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C 852 || JIS C8201-1
- Circularity Profile:
- ENVEOLI1710019EN
- Electrical Shock Protection Class:
- class II IEC 61140
- Cad Overall Depth:
- 42 mm
- Shape Of Screw Head:
- cross slotted
- Rohs Exemption Information:
- Yes
- Light Source Colour:
- red
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Signaling Unit Head:
- round
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Product Or Component Type:
- pilot light
- Bulb Base:
- BA 9s
- Lens Material:
- polycarbonate
- Reach Free Of Svhc:
- Yes
- Product Certifications:
- UL 508 || NEMA
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Size:
- 30 mm
- Lens Type:
- domed plastic
- Range Of Product:
- Harmony 9001SK
- Device Presentation:
- complete product
- [Us] Rated Supply Voltage:
- 120 V
- Device Short Name:
- 9001SK
- Light Block Supply:
- direct 120 V AC/DC
- Net Weight:
- 0.082 kg
- Ip Degree Of Protection:
- IP66 IEC 60529
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Operating Position:
- any position
