Schneider Electric 9001SKP38R31 Pilot Light 120V 30Mm Sk +Options
Schneider Electric
$125.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

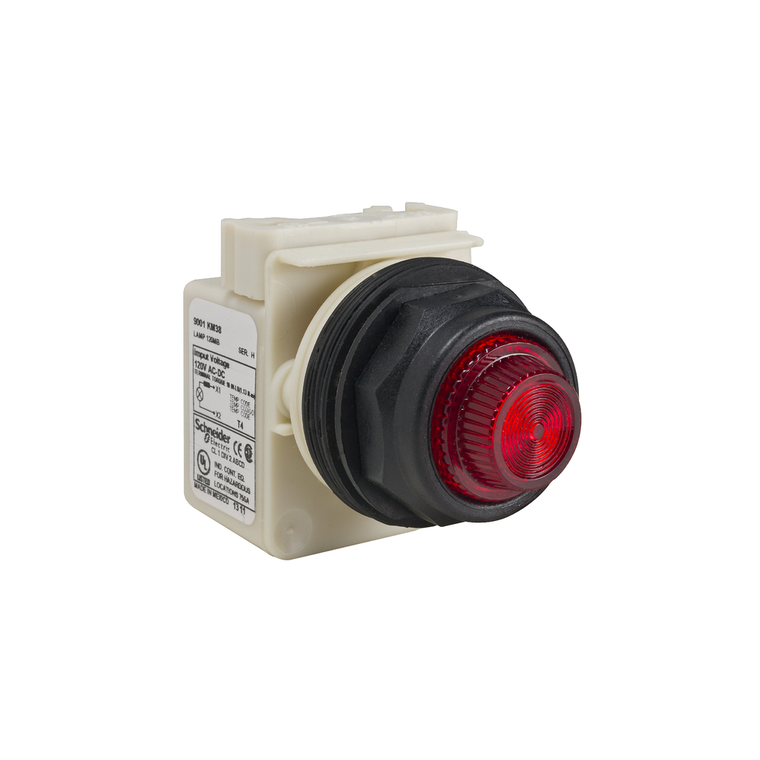

Schneider Electric 9001SKP38R31 Pilot Light 120V 30Mm Sk +Options
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This standard pilot light has a plastic ring nut. This pilot light has a 110/120 VAC/VDC full voltage light module to provide the illumination. The light module has an incandescent lamp. This operator is supplied with a red plastic fresnel pilot light lens. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a 30mm panel cutout." "The modular range of 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Lens Material:
- polycarbonate
- Bulb Base:
- BA 9s
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI1710019EN
- Protective Treatment:
- TC
- [Us] Rated Supply Voltage:
- 120 V
- Light Source:
- incandescent bulb
- Bezel Material:
- plastic
- Size:
- 30 mm
- Lens Type:
- fresnel plastic
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP1710019EN
- Light Block Supply:
- full voltage or resistor
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Light Block Supply:
- full voltage 120 V
- Operating Mode:
- normal
- Product Or Component Type:
- pilot light
- Shape Of Signaling Unit Head:
- round
- Cap/Operator Or Lens Colour:
- red
- Range Of Product:
- Harmony 9001SK
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Lens Type:
- fresnel
- Mounting Diameter:
- 30 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP66
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
