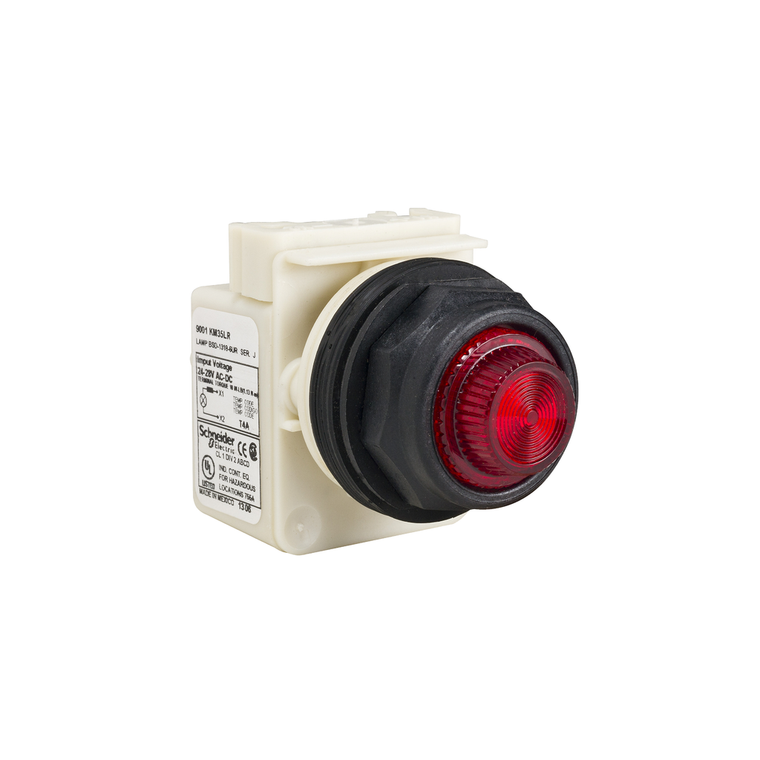

Schneider Electric 9001SKP3LRR31 Pilot Light 220Vac 30Mm Sk +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001SKP3LRR31 Pilot Light 220Vac 30Mm Sk +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001SKP3LRR31

UPC:

7.85901E+11

MPN:

Condition:

New

Operating Position:

any position

Light Source:

LED

Ambient Air Temperature For Operation:

-25-70 °C

Lens Material:

polycarbonate

Mounting Diameter:

30 mm

Lens Type:

fresnel

Tightening Torque:

0.8-0.8 N.m EN/IEC 60947-1

Reach Free Of Svhc:

Yes

Circularity Profile:

ENVEOLI1710019EN

Shock Resistance:

50 gn IEC 60068-2-27

Light Block Supply:

direct 208...220 V AC 50/60 Hz

Warranty:

18 months

Device Short Name:

9001SK

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

0.181 kg

Light Source Colour:

red

Light Source:

Red LED

Standards:

JIS C 852 || EN/IEC 60947-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1

Range Of Product:

Harmony 9001SK

Rohs Exemption Information:

Yes

Light Block Supply:

via integral transformer

Shape Of Screw Head:

cross slotted

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV EN/IEC 60947-1

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

Sustainable Offer Status:

Green Premium product

Product Certifications:

UL 508 || NEMA

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Protective Treatment:

TC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Or Component Type:

pilot light

Shape Of Signaling Unit Head:

round

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Bezel Material:

plastic

Electrical Shock Protection Class:

class II IEC 61140

Ip Degree Of Protection:

IP66 IEC 60529

Short-Circuit Protection:

10 A cartridge fuse EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage:

250 V 2)EN/IEC 60947-1

Size:

30 mm

Cap/Operator Or Lens Colour:

red

Supply Frequency:

50...60 Hz

[Us] Rated Supply Voltage:

208...220 V AC 50/60 Hz

Mercury Free:

Yes

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Cad Overall Depth:

42 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP1710019EN

Cad Overall Width:

54 mm

Bulb Base:

BA 9s

Cad Overall Height:

70 mm

Lens Type:

fresnel plastic

China Rohs Regulation:

X

[Us] Rated Supply Voltage:

208...220 V
