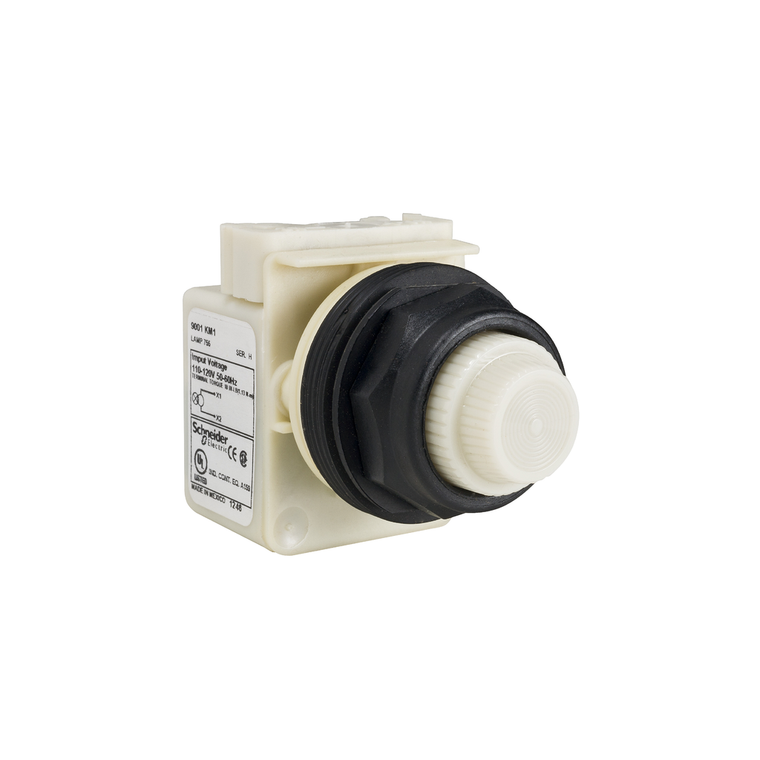

Schneider Electric 9001SKP3W31 Pilot Light 220Vac 30Mm Sk +Options
The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This standard pilot light has a plastic ring nut. This pilot light has a 208/220 VAC 50/60 Hz transformer light module to provide the illumination. The light module has an incandescent lamp. This operator is supplied with a white plastic fresnel pilot light lens. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "This product is certified by NEMA and UL 508. It meets JIS C8201-5-1, EN/IEC 60947-5-4, JIS C 852, CSA C22.2 No 14, EN/IEC 60947-5-1 and JIS C8201-1 standards." "It is installed into a 30mm panel cutout." "The modular range of 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
- Supply Frequency:
- 50...60 Hz
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Operating Position:
- any position
- Warranty:
- 18 months
- Shape Of Screw Head:
- cross slotted
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C 852 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
- Size:
- 30 mm
- Bulb Base:
- BA 9s
- Light Block Supply:
- via integral transformer
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Light Source:
- incandescent
- Protective Treatment:
- TC
- Shape Of Signaling Unit Head:
- round
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Light Source:
- incandescent bulb
- Range Of Product:
- Harmony 9001SK
- Bezel Material:
- plastic
- China Rohs Regulation:
- X
- Device Short Name:
- 9001SK
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Cad Overall Height:
- 70 mm
- Ambient Air Temperature For Operation:
- -25-70 °C
- Lens Type:
- fresnel
- Cad Overall Depth:
- 42 mm
- Product Or Component Type:
- pilot light
- Mercury Free:
- Yes
- Cad Overall Width:
- 54 mm
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection:
- IP66 IEC 60529
- Lens Type:
- fresnel plastic
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electrical Shock Protection Class:
- class II IEC 61140
- Product Certifications:
- UL 508 || NEMA
- Light Block Supply:
- via integral transformer 208...220 V AC 50/60 Hz 6 V)
- Lens Material:
- polycarbonate
- Cap/Operator Or Lens Colour:
- white
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Circularity Profile:
- ENVEOLI1710019EN
- Mounting Diameter:
- 30 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Environmental Disclosure:
- ENVPEP1710019EN
- Net Weight:
- 0.181 kg
- [Us] Rated Supply Voltage:
- 208...220 V AC 50/60 Hz
- [Us] Rated Supply Voltage:
- 208...220 V
