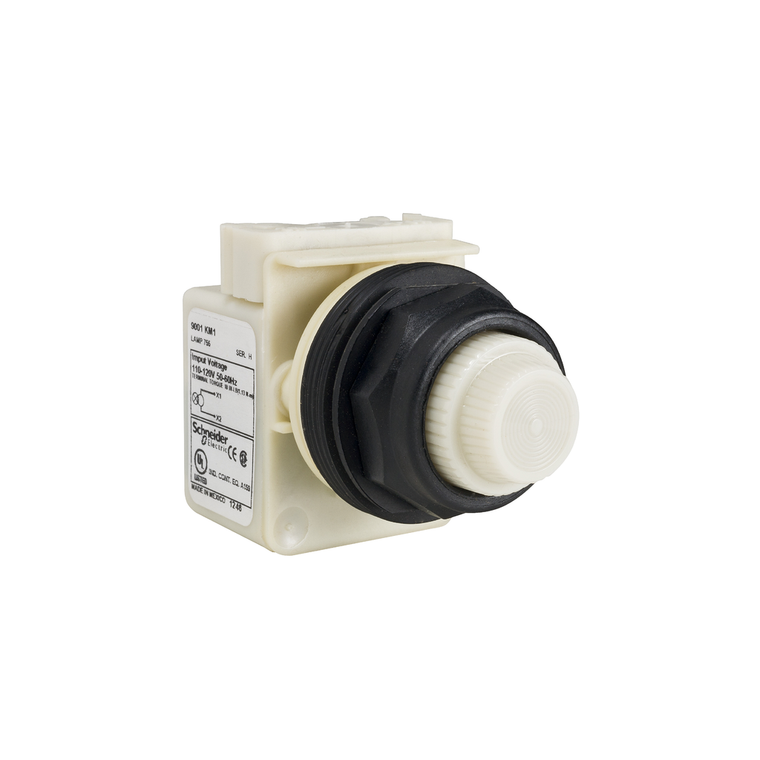

Schneider Electric 9001SKP5W31 Pilot Light 480Vac 30Mm Sk +Options
SKU:
9001SKP5W31
UPC:
785901704379
MPN:
Condition:
New
Light Source:
incandescent
[Us] Rated Supply Voltage:
380...480 V
Lens Type:
fresnel plastic
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Mounting Diameter:
30 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Cad Overall Height:
70 mm
Cad Overall Width:
54 mm
Size:
30 mm
Short-Circuit Protection:
10 A cartridge fuse EN/IEC 60947-5-1
[Ui] Rated Insulation Voltage:
250 V 2)EN/IEC 60947-1
Lens Type:
fresnel
Reach Free Of Svhc:
Yes
Bezel Material:
plastic
Shape Of Screw Head:
cross slotted
Light Source:
incandescent bulb
Device Short Name:
9001SK
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Toxic Heavy Metal Free:
Yes
Tightening Torque:
0.8-0.8 N.m EN/IEC 60947-1
Light Block Supply:
via integral transformer 380...480 V AC 25/30 Hz 6 V)
Operating Position:
any position
Shock Resistance:
50 gn IEC 60068-2-27
Circularity Profile:
ENVEOLI1710019EN
Shape Of Signaling Unit Head:
round
Net Weight:
0.181 kg
Supply Frequency:
50...60 Hz
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Connections - Terminals:
screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Ip Degree Of Protection:
IP66 IEC 60529
Lens Material:
polycarbonate
Electrical Shock Protection Class:
class II IEC 61140
Product Or Component Type:
pilot light
Mercury Free:
Yes
Product Certifications:
NEMA || UL 508
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV EN/IEC 60947-1
Cap/Operator Or Lens Colour:
white
Ambient Air Temperature For Operation:
-25-70 °C
China Rohs Regulation:
X
Environmental Disclosure:
ENVPEP1710019EN
Range Of Product:
Harmony 9001SK
Standards:
EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 852 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
Bulb Base:
BA 9s
Light Block Supply:
via integral transformer
Warranty:
18 months
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Sustainable Offer Status:
Green Premium product
Cad Overall Depth:
42 mm
Ambient Air Temperature For Storage:
-40-70 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
