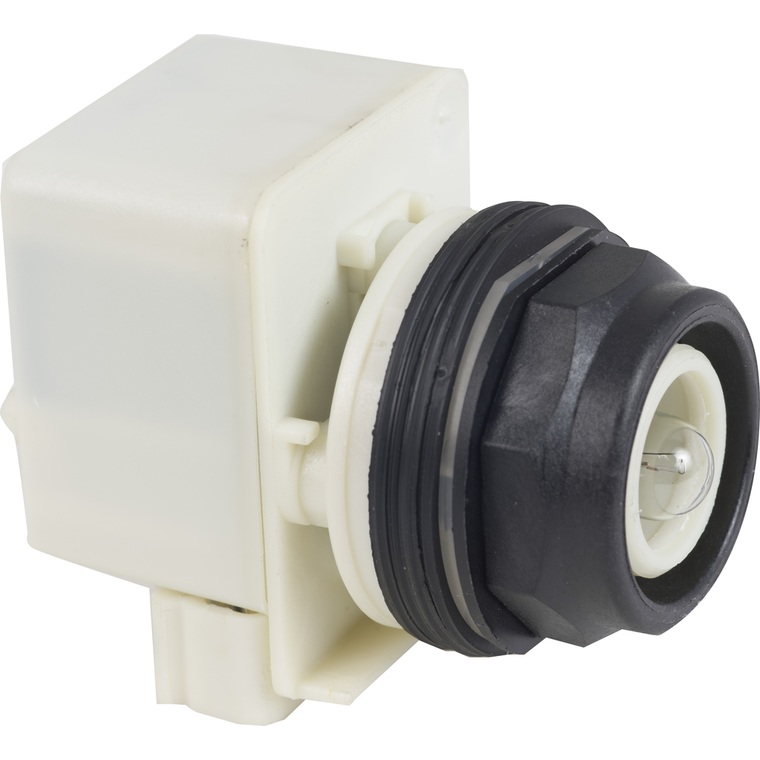

Schneider Electric 9001SKP7 30Mm Pilot Light Transformer 220-240V
Schneider Electric
$143.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 9001SKP7 30Mm Pilot Light Transformer 220-240V
This illuminated pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It works at a rated voltage of 220 to 240 V It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
- Light Block Supply:
- via transformer 220 V AC 50/60 Hz || via transformer 240 V AC 50/60 Hz
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Bezel Material:
- plastic
- Light Block Supply:
- via integral transformer
- Ip Degree Of Protection:
- IP66
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony 9001SK
- Cap/Operator Or Lens Colour:
- without cap
- Mercury Free:
- Yes
- Light Source:
- incandescent bulb
- Protective Treatment:
- TC
- Size:
- 30 mm
- Circularity Profile:
- ENVEOLI1710019EN
- Operating Mode:
- normal
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Toxic Heavy Metal Free:
- Yes
- [Us] Rated Supply Voltage:
- 220...240 V
- Bulb Base:
- BA 9s
- Product Or Component Type:
- head for pilot light
- Supply Frequency:
- 50...60 Hz
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 30 mm
- Environmental Disclosure:
- ENVPEP1710019EN
- Shape Of Signaling Unit Head:
- round
- Warranty:
- 18 months
- Reach Free Of Svhc:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
