Schneider Electric 9001SKP7LRR31 Pilot Light 240Vac 30Mm Sk +Options

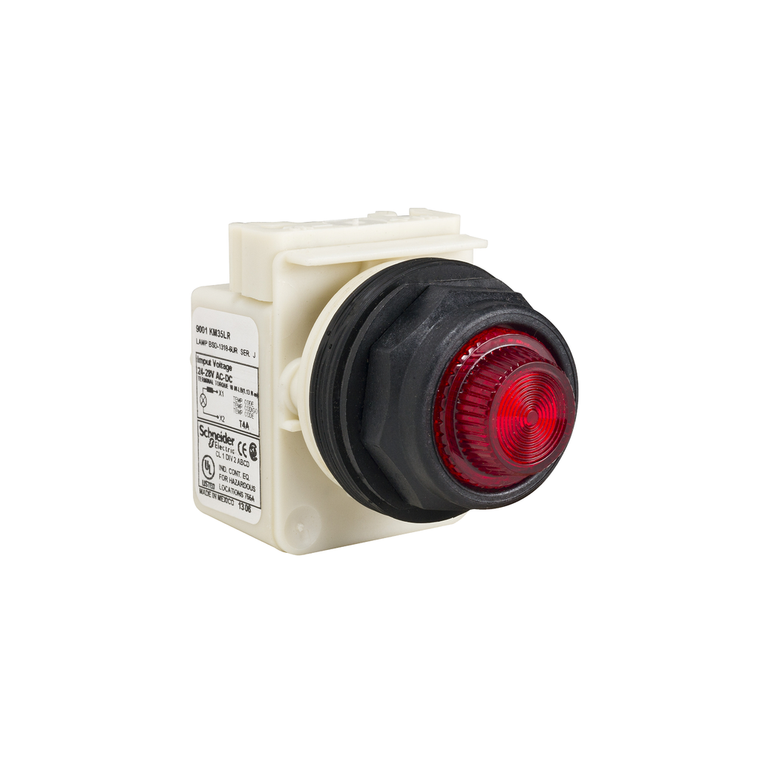

This Harmony 9001SK, red pilot light with integral LED and plastic fresnel is supplied with 240V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
- Shape Of Screw Head:
- cross slotted
- Light Block Supply:
- via integral transformer
- Toxic Heavy Metal Free:
- Yes
- Bulb Base:
- BA 9s
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Lens Type:
- fresnel plastic
- Lens Material:
- polycarbonate
- Circularity Profile:
- ENVEOLI1710019EN
- China Rohs Regulation:
- X
- Supply Frequency:
- 50...60 Hz
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C 852 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Mercury Free:
- Yes
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- Device Short Name:
- 9001SK
- Product Or Component Type:
- pilot light
- Cap/Operator Or Lens Colour:
- red
- Environmental Disclosure:
- ENVPEP1710019EN
- Ambient Air Temperature For Operation:
- -25-70 °C
- Ambient Air Temperature For Storage:
- -40-70 °C
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Presentation:
- complete product
- Light Block Supply:
- direct 220...240 V AC 50/60 Hz
- Lens Type:
- fresnel
- Sustainable Offer Status:
- Green Premium product
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Shape Of Signaling Unit Head:
- round
- Mounting Diameter:
- 30 mm
- Net Weight:
- 0.181 kg
- Rohs Exemption Information:
- Yes
- [Us] Rated Supply Voltage:
- 220...240 V AC 50/60 Hz
- Ip Degree Of Protection:
- IP66 IEC 60529
- Bezel Material:
- plastic
- Protective Treatment:
- TC
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Light Source:
- LED
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- [Us] Rated Supply Voltage:
- 220...240 V
- Size:
- 30 mm
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Cad Overall Depth:
- 42 mm
- Warranty:
- 18 months
- Light Source:
- Red LED
- Light Source Colour:
- red
- Cad Overall Height:
- 70 mm
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Width:
- 54 mm
- Electrical Shock Protection Class:
- class II IEC 61140
- Operating Position:
- any position
- Product Certifications:
- NEMA || UL 508
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Range Of Product:
- Harmony 9001SK
