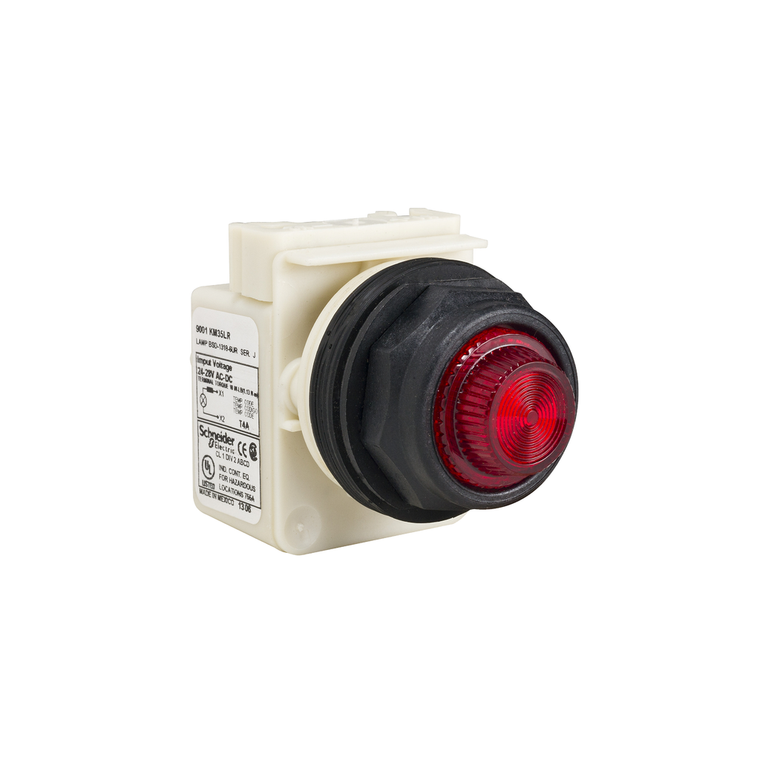

Schneider Electric 9001SKP8LRR31 Pilot Light 277Vac 30Mm Sk +Options

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001SKP8LRR31 Pilot Light 277Vac 30Mm Sk +Options

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001SKP8LRR31

UPC:

785901325352

MPN:

Condition:

New

Protective Treatment:

TC

Product Certifications:

NEMA || UL 508

Cad Overall Depth:

42 mm

Lens Type:

fresnel plastic

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Light Source Colour:

red

Bezel Material:

plastic

Lens Type:

fresnel

Standards:

JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C 852 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1

Operating Position:

any position

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shape Of Screw Head:

cross slotted

Cad Overall Width:

54 mm

[Us] Rated Supply Voltage:

277 V

Supply Frequency:

50...60 Hz

Connections - Terminals:

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1

Ip Degree Of Protection:

IP66 IEC 60529

Mercury Free:

Yes

Circularity Profile:

ENVEOLI1710019EN

Ambient Air Temperature For Operation:

-25-70 °C

Shape Of Signaling Unit Head:

round

Bulb Base:

BA 9s

Light Block Supply:

via integral transformer

Light Source:

Red LED

Warranty:

18 months

Cap/Operator Or Lens Colour:

red

Short-Circuit Protection:

10 A cartridge fuse EN/IEC 60947-5-1

Environmental Disclosure:

ENVPEP1710019EN

China Rohs Regulation:

X

Product Or Component Type:

pilot light

Cad Overall Height:

70 mm

Electrical Shock Protection Class:

class II IEC 61140

Size:

30 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic Heavy Metal Free:

Yes

Tightening Torque:

0.8-0.8 N.m EN/IEC 60947-1

Mounting Diameter:

30 mm

Device Short Name:

9001SK

Light Source:

LED

[Ui] Rated Insulation Voltage:

250 V 2)EN/IEC 60947-1

[Uimp] Rated Impulse Withstand Voltage:

2.5 kV EN/IEC 60947-1

Sustainable Offer Status:

Green Premium product

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Net Weight:

0.181 kg

[Ith] Conventional Free Air Thermal Current:

0.416666666666667

Light Block Supply:

via integral transformer 277 V AC 50/60 Hz 6 V)

Rohs Exemption Information:

Yes

Lens Material:

polycarbonate

Shock Resistance:

50 gn IEC 60068-2-27

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Range Of Product:

Harmony 9001SK

Reach Regulation:

Free of Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

277 V AC 50/60 Hz

Datasheet:

View
