Schneider Electric 9001SKP8R31 Pilot Light 277Vac 30Mm Sk +Options

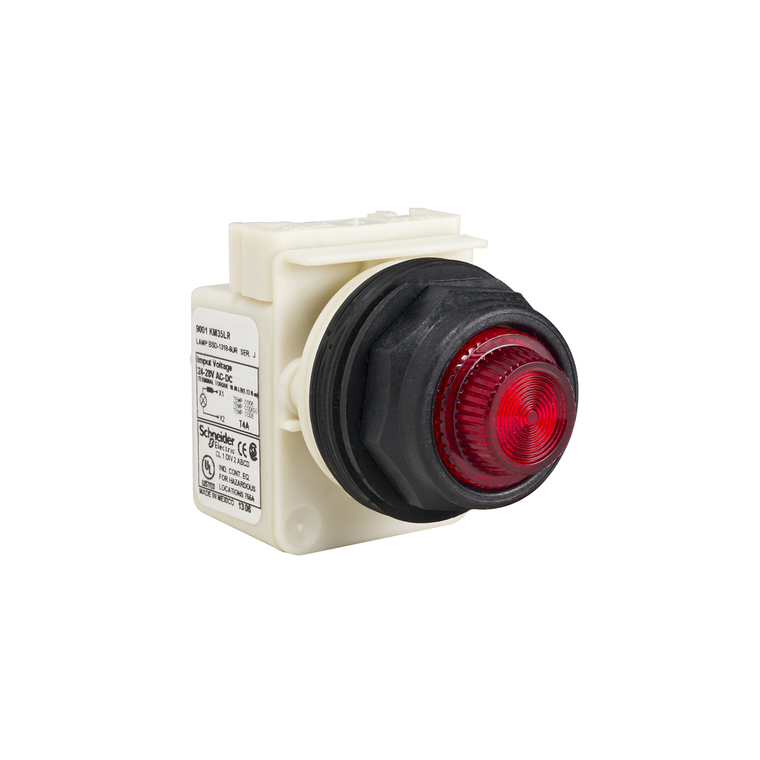

Pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel, red, 30mm, 277V
- China Rohs Regulation:
- X
- Product Or Component Type:
- pilot light
- Light Source:
- incandescent bulb
- Tightening Torque:
- 0.8-0.8 N.m EN/IEC 60947-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1710019EN
- Net Weight:
- 0.181 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Short-Circuit Protection:
- 10 A cartridge fuse EN/IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current:
- 0.416666666666667
- Mounting Diameter:
- 30 mm
- Operating Position:
- any position
- Light Source:
- incandescent
- Size:
- 30 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Width:
- 54 mm
- Connections - Terminals:
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Toxic Heavy Metal Free:
- Yes
- Cad Overall Height:
- 70 mm
- Lens Type:
- fresnel plastic
- Mercury Free:
- Yes
- Light Block Supply:
- via integral transformer
- Product Certifications:
- NEMA || UL 508
- Shock Resistance:
- 50 gn IEC 60068-2-27
- Bulb Base:
- BA 9s
- Lens Material:
- polycarbonate
- Reach Free Of Svhc:
- Yes
- Lens Type:
- fresnel
- Supply Frequency:
- 50...60 Hz
- Standards:
- UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile:
- ENVEOLI1710019EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Bezel Material:
- plastic
- Range Of Product:
- Harmony 9001SK
- Sustainable Offer Status:
- Green Premium product
- Shape Of Screw Head:
- cross slotted
- Cad Overall Depth:
- 42 mm
- Warranty:
- 18 months
- Vibration Resistance:
- 7 gn 2-500 Hz)IEC 60068-2-6
- Electrical Shock Protection Class:
- class II IEC 61140
- Cap/Operator Or Lens Colour:
- red
- Device Short Name:
- 9001SK
- [Us] Rated Supply Voltage:
- 277 V
- Ambient Air Temperature For Operation:
- -25-70 °C
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV EN/IEC 60947-1
- Shape Of Signaling Unit Head:
- round
- [Ui] Rated Insulation Voltage:
- 250 V 2)EN/IEC 60947-1
- Protective Treatment:
- TC
- Light Block Supply:
- via integral transformer 277 V AC 50/60 Hz 6 V)
- Ip Degree Of Protection:
- IP66 IEC 60529
- [Us] Rated Supply Voltage:
- 277 V AC 50/60 Hz
