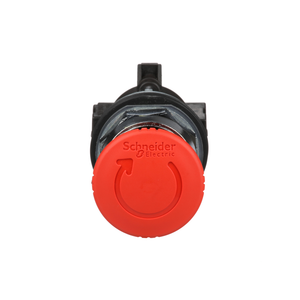

Schneider Electric 9001SKR16 Trigger Action, Mushroom, Plastic Base

(No reviews yet) Write a Review

Write a Review

Schneider Electric 9001SKR16 Trigger Action, Mushroom, Plastic Base

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

9001SKR16

UPC:

3389118372559

MPN:

Condition:

New

Nema Degree Of Protection:

NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

Type Of Operator:

turn to release

Operator Position Information:

2 positions

Cad Overall Height:

40 mm

Shape Of Signaling Unit Head:

round

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Of Product:

Harmony 9001SK

Cad Overall Depth:

90 mm

Bezel Material:

plastic

Operator Profile:

mushroom Ø 40 mm

China Rohs Regulation:

X

Mounting Diameter:

30 mm

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP66 IEC 60529

Vibration Resistance:

7 gn 2-500 Hz)IEC 60068-2-6

Contacts Type And Composition:

without contact block

Circularity Profile:

N/A

Operating Position:

any position

Toxic Heavy Metal Free:

Yes

Product Or Component Type:

head for emergency switching off push-button

Rohs Exemption Information:

Yes

Net Weight:

0.141 kg

Environmental Disclosure:

ENVPEP121016EN

Product Certifications:

NEMA || UL listed file E78403 CCN NKCR || CSA LR25490 class 3211 03 || UL 508

Operator Profile:

red mushroom Ø 40 mm, CE

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cad Overall Width:

40 mm

Shock Resistance:

50 gn IEC 60068-2-27

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Warranty:

18 months

Protective Treatment:

TC

Ambient Air Temperature For Storage:

-40-70 °C

Type Of Operator:

turn to release || trigger action || maintained

Ambient Air Temperature For Operation:

-25-70 °C

Standards:

CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C 4520 || JIS C 852 || UL 60947-5-5

Size:

30 mm

Mechanical Durability:

5000000 cycles

Electrical Shock Protection Class:

class II IEC 61140

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Cap/Operator Or Lens Colour:

red

Device Short Name:

9001SK

Brochure:

View

Catalog:

View

Datasheet:

View
