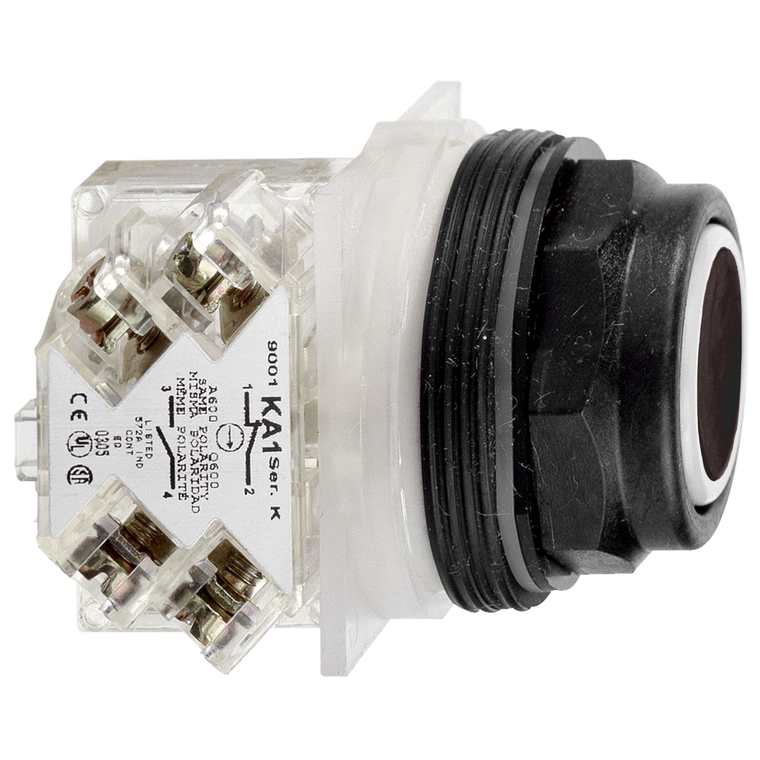

Schneider Electric 9001SKR1BH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric 9001SKR1BH13 Pushbutton 600Vac 10Amp 30Mm Sk +Options

Schneider Electric
SKU:
9001SKR1BH13
|
UPC:
3.38912E+12
$81.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Schneider Electric Harmony 9001SK modular flush black push-button with full guard has 2 positions, operates with spring return mechanism and has a double insulated plastic bezel. It has 1 x NO + 1 x NC contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. This flush push-button with full guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13). Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
Reach Free Of Svhc:
Yes
China Rohs Regulation:
X
Connections - Terminals:
screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Contact Operation:
standard
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Storage:
-40-70 °C
[Uimp] Rated Impulse Withstand Voltage:
2.5 kV EN/IEC 60947-1
Net Weight:
0.086 kg
Operator Profile:
flush
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Warranty:
18 months
Shape Of Screw Head:
cross slotted
Positive Opening:
without
Bezel Material:
plastic
Electrical Shock Protection Class:
class II IEC 61140
Shock Resistance:
50 gn IEC 60068-2-27
[Ith] Conventional Free Air Thermal Current:
0.416666666666667
Operator Additional Information:
plastic guard
Ip Degree Of Protection:
IP66 IEC 60529
Ambient Air Temperature For Operation:
-25-70 °C
Rohs Exemption Information:
Yes
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600-Q600 || 0.55 A 125 V, DC-13, A600-Q600
Contacts Type And Composition:
1 C/O
Mounting Diameter:
30 mm
Shape Of Signaling Unit Head:
octagonal
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Tightening Torque:
0.8-0.8 N.m EN/IEC 60947-1
Cap/Operator Or Lens Colour:
black
Size:
30 mm
Protective Treatment:
TC
Short-Circuit Protection:
10 A cartridge fuse EN/IEC 60947-5-1
Product Or Component Type:
push-button
Range Of Product:
Harmony 9001SK
[Icm] Rated Short-Circuit Making Capacity:
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Nema Degree Of Protection:
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Sustainable Offer Status:
Green Premium product
Rated Breaking Capacity:
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 6 kA 125 V DC-13, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
Toxic Heavy Metal Free:
Yes
Environmental Disclosure:
EnvPEP120817EN
Operator Profile:
black flush, unmarked
Standards:
EN/IEC 60947-5-4 || UL 508 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C 852
Vibration Resistance:
7 gn 2-500 Hz)IEC 60068-2-6
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
N/A
Operating Position:
any position
Mercury Free:
Yes
Device Short Name:
9001SK
Product Certifications:
NEMA || UL 508
Contacts Material:
silver alloy contacts
Device Presentation:
complete product
Mechanical Durability:
5000000 cycles
Brochure:
View
Catalog:
View
Datasheet:
View
