Schneider Electric

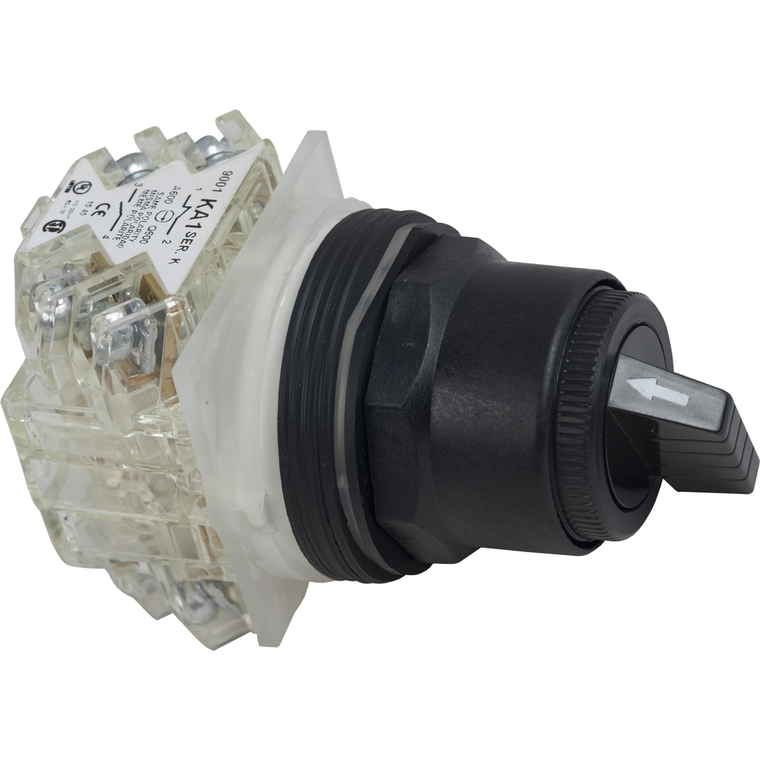

Schneider Electric 9001SKS43BH2 Selector Switch 600Vac 10A 30Mm Sk

(No reviews yet) Write a Review
SKU:
9001SKS43BH2
UPC:
3.38912E+12
Condition:
New
Device Short Name:
9001SK
Mercury Free:
Yes
Contacts Type And Composition:
2 C/O
Ambient Air Temperature For Storage:
-40-70 °C
Environmental Disclosure:
ENVPEP120820EN
Cap/Operator Or Lens Colour:
black
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Bezel Material:
plastic
Electrical Shock Protection Class:
class II IEC 61140
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nema Degree Of Protection:
NEMA 1/2/3/3R/4/4X/6/12/13
Product Certifications:
UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
China Rohs Regulation:
X
Protective Treatment:
TC
Warranty:
18 months
Ambient Air Temperature For Operation:
-25-70 °C
Type Of Operator:
stay put
Operator Profile:
standard handle
Toxic Heavy Metal Free:
Yes
Rohs Exemption Information:
Yes
Size:
30 mm
Product Or Component Type:
selector switch
Cam Profile:
3
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Operator Position Information:
3 positions
Range Of Product:
Harmony 9001SK
Device Presentation:
complete product
Circularity Profile:
N/A
Ip Degree Of Protection:
IP66 IEC 60529
Reach Free Of Svhc:
Yes
Mounting Diameter:
30 mm
Brochure:
View
Catalog:
View
Datasheet:
View
$152.00

Description

This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 3 positions. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
